SHOP MANUAL
DRIVE LINE
Ch 3 page 94 Ch 3 page 95
DRIVE LINE

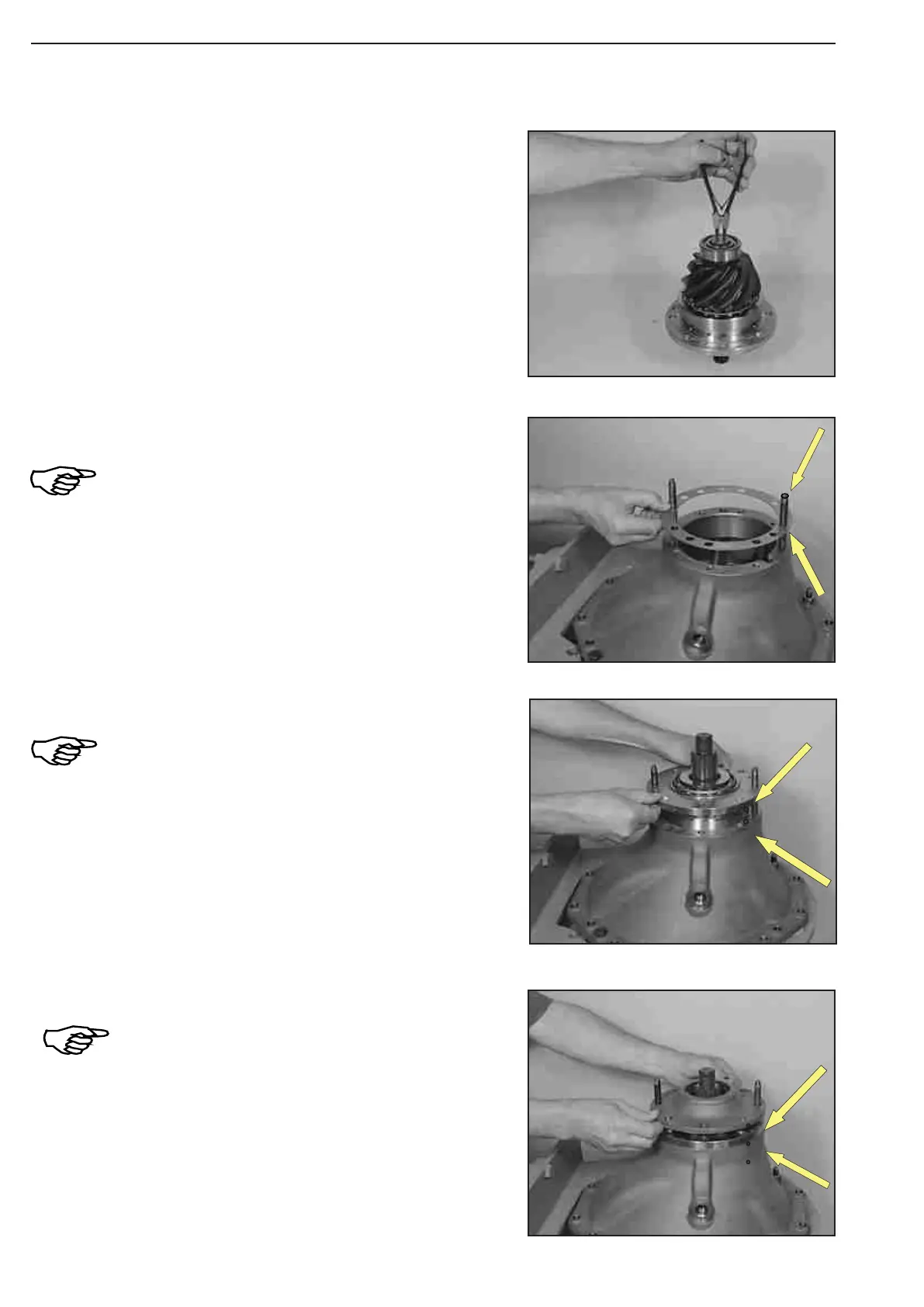

Fix roller bearing by means of circlip.
(S) Set of external pliers 504231
Wet mounting face with sealing compound (Loctite, Type-No. 574)
and position pre-assembled sealing cap against shoulder.
Pay attention to the radial installation location, see
markings (Arrows) !
Introduce pre-assembled bearing bush until contact is obtained.
Pay attention to the radial installation location, see
markings (Arrows) !
(S) Plastic mallet 504196
Install two adjusting screws and line up the shim e.g. s = 0,60 mm
(see Example A3 /Figure 258).
Pay attention to the overlapping of the oil ducts, see
Arrows!
Wet the shim(s) on both sides with the sealing
compound
(Loctite, Type-No. 574) !
(S) Adjusting screws 504186
Figure 260
Figure 259
Figure 258
Figure 257
