DRIVE LINE
Secure castle nut by means of cotter pin, see Arrow !
Tilt differential carrier 90°.
Wet contact face of the disc with sealing compound (Loctite,
Type-No.574).
Line up the disc and tighten castle nut.
Torque limit .............................. » 1300 Nm
(S) Clamping yoke 509110
Pipe, slotted nut 509157
Screw sealing cap and bearing bush together with
the axle drive housing.
Wet contact face of the disk with sealing compound
(Loctite,Type-No.574).
Line up the disc and tighten castle nut.
Torque limit .............................. » 1300 Nm
(S) Clamping yoke 509110
Pipe, slotted nut 509157
Pipe, slotted nut 509157

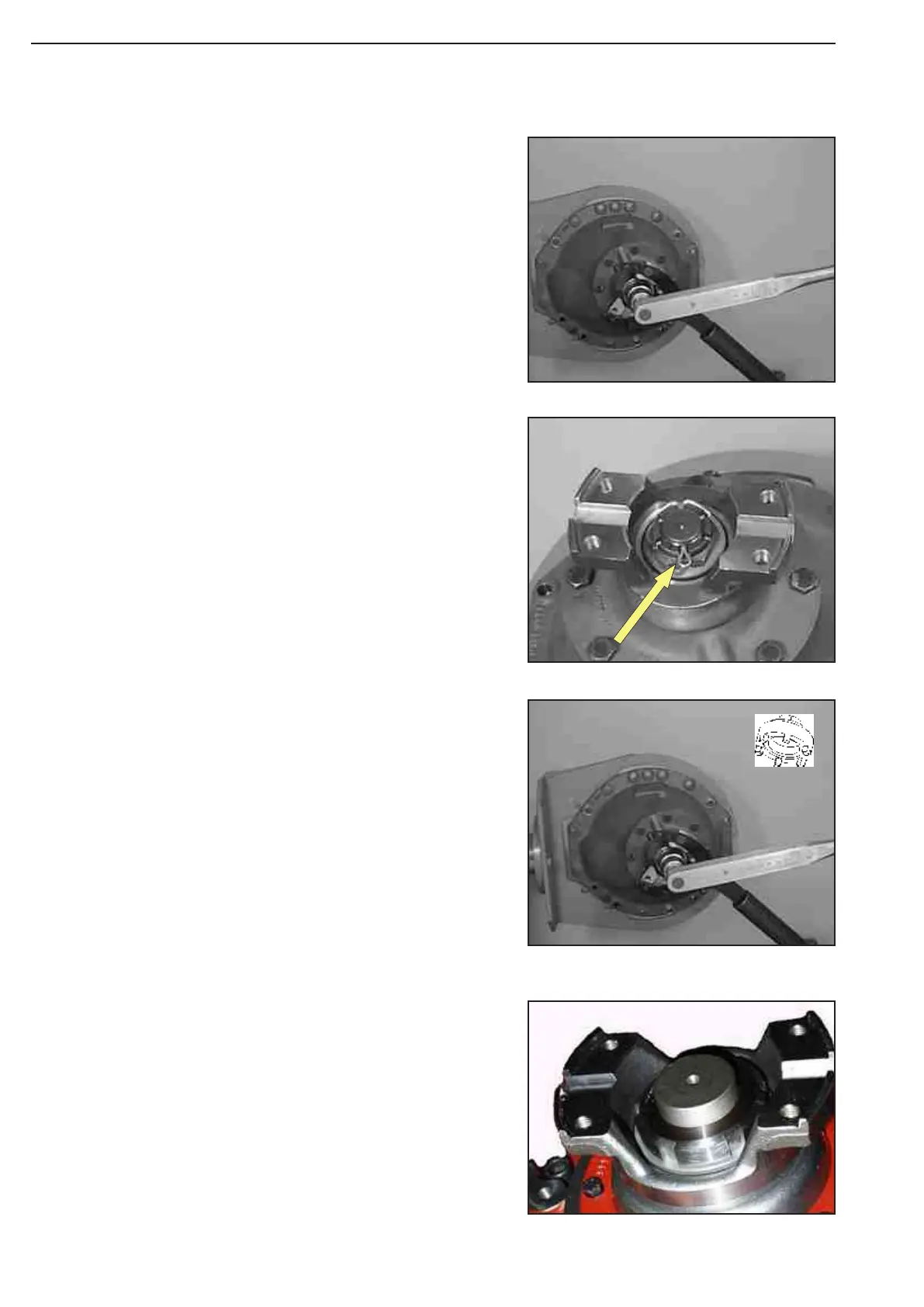

Figure 268
Figure 267
Figure 266
Figure 265
