SHOP MANUAL
DRIVE LINE
Ch 3 page 100 Ch 3 page 101
DRIVE LINE

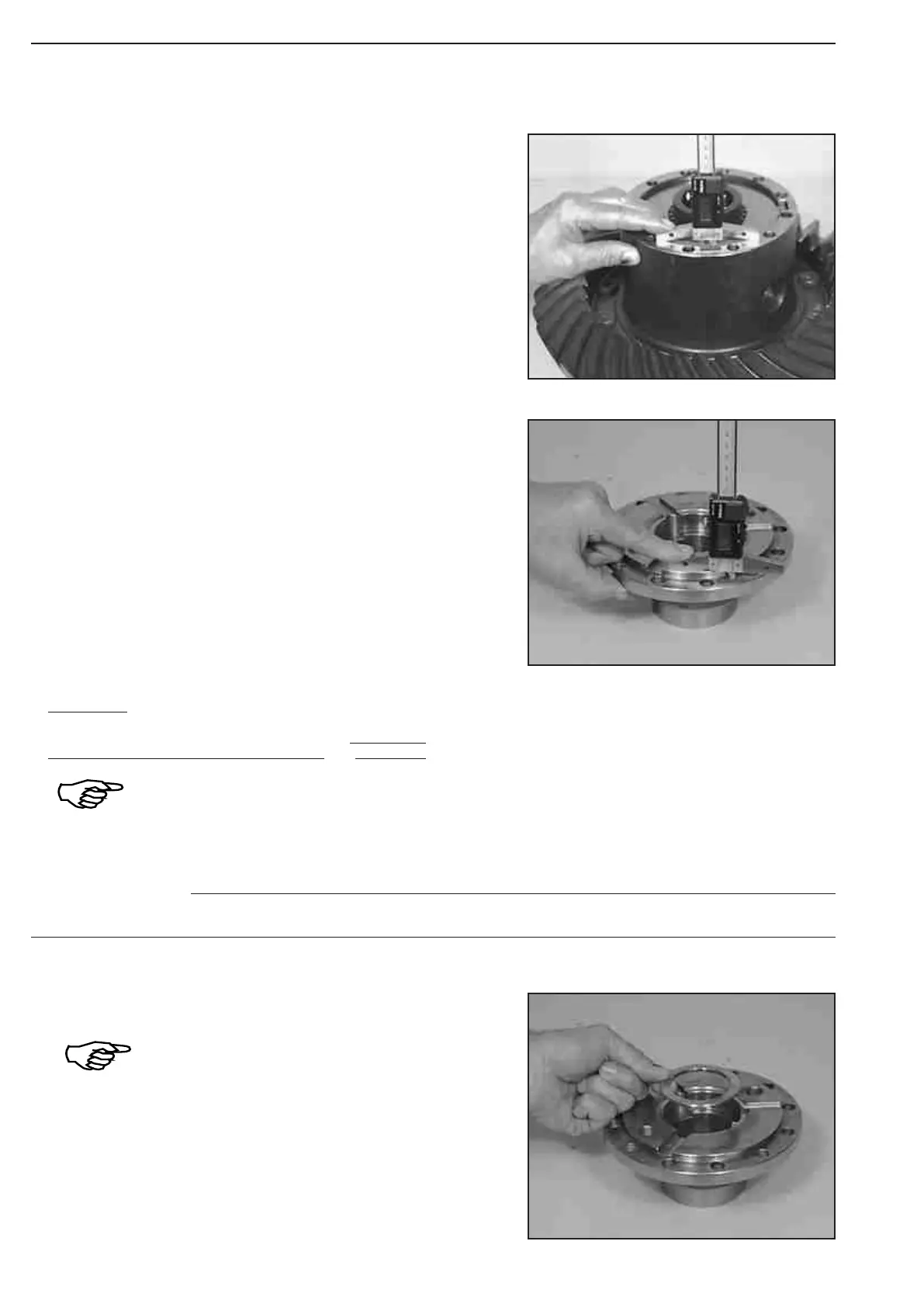

Check the Assembly play of the internal components =
0,2 ... 0,6 mm (Figure 279 ... Example B):
Differential housing
Measure Dimension I from the mounting face to the outer plate.
Dimension I e.g. ........................................ 6,50 mm
(S) Digital Depth gauge 504175
Make thrust washer, with the chamfer on the outer
diameter showing downward, adhere in the housing cover.
Use assembly grease !
Pay attention to the Note, Figure 269
Example B:
Dimension I .............................................. 6,50 mm
Dimension II ............................................. - 6,20 mm
Difference ^ Assembly play = 0,30 mm
At the assembly of new plates, aim at the lower value
of the assembly play !
Corrections have to be carried out with
corresponding outer plates !
Housing cover
Measure Dimension II from the contact face to the mounting face.
Dimension II e.g. ...................................... 6,20 mm
(S) Digital Depth gauge 504175
NOTE
Figure 280
Figure 281
Figure 279
