SHOP MANUAL
DRIVE LINE
Ch 3 page 100 Ch 3 page 101
DRIVE LINE

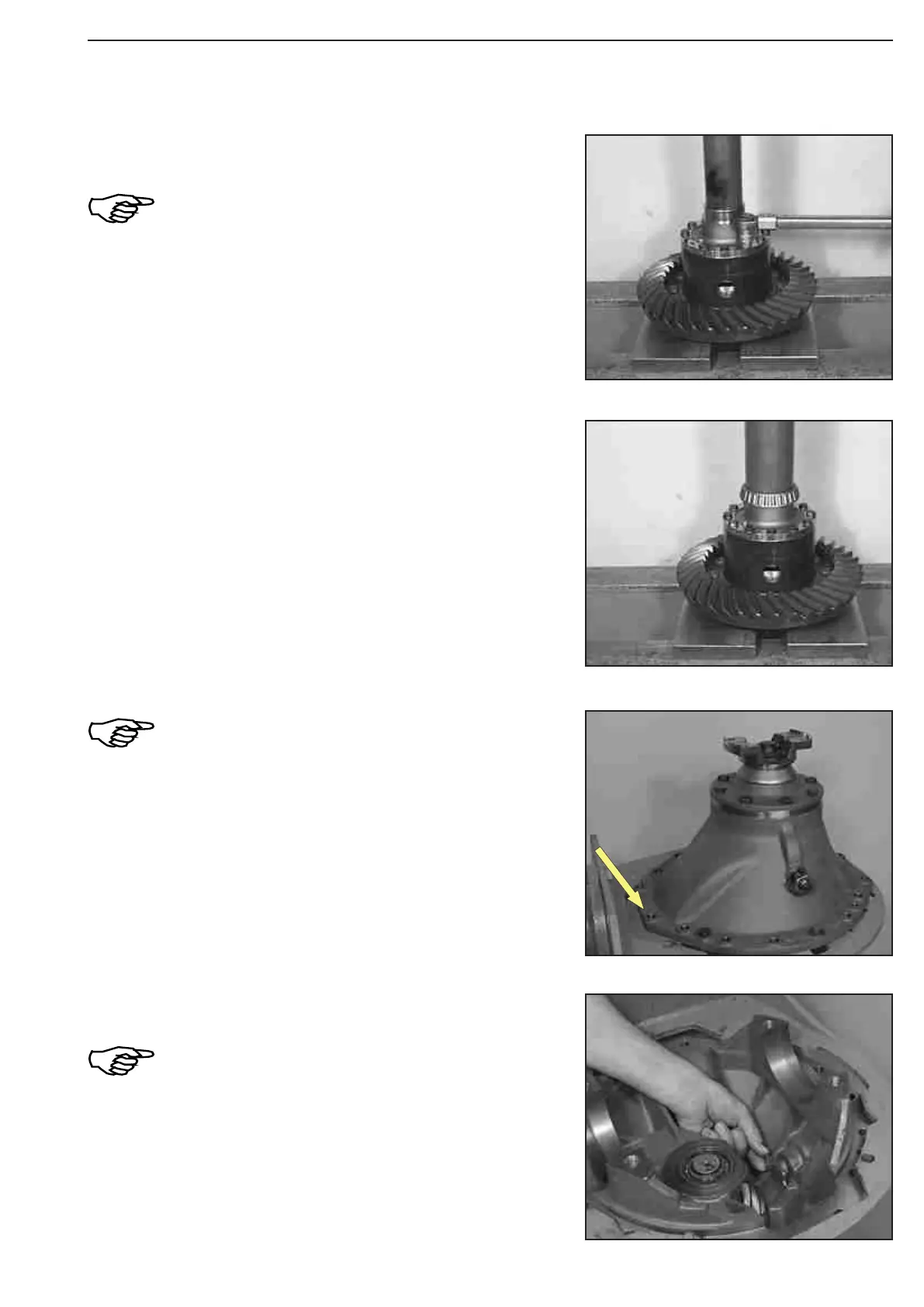

Mount housing cover and fasten it with strain bolts.
Torque limit .................................. 105 Nm
Wet thread of strain bolts with Loctite
(Type-No. 262) !
Only use of new strain bolts permitted !
Make sliding pad adhere with assembly grease on the end face of
the set screw.
The adjustment of the sliding pad is realized after
the installation of the complete differential !
Install set screw and hex. nut, see Arrow !
Wet thread of set screw with
Loctite (Type-No. 574) !
Screw in the set screw only far enough until the
sliding pad can be installed (Figure 285) !
Press bearing inner race against shoulder.
Install crown wheel-side bearing inner race accordingly.
Figure 285
Figure 284
Figure 283
Figure 282
