SHOP MANUAL
DRIVE LINE
Ch 3 page 116 Ch 3 page 117
DRIVE LINE

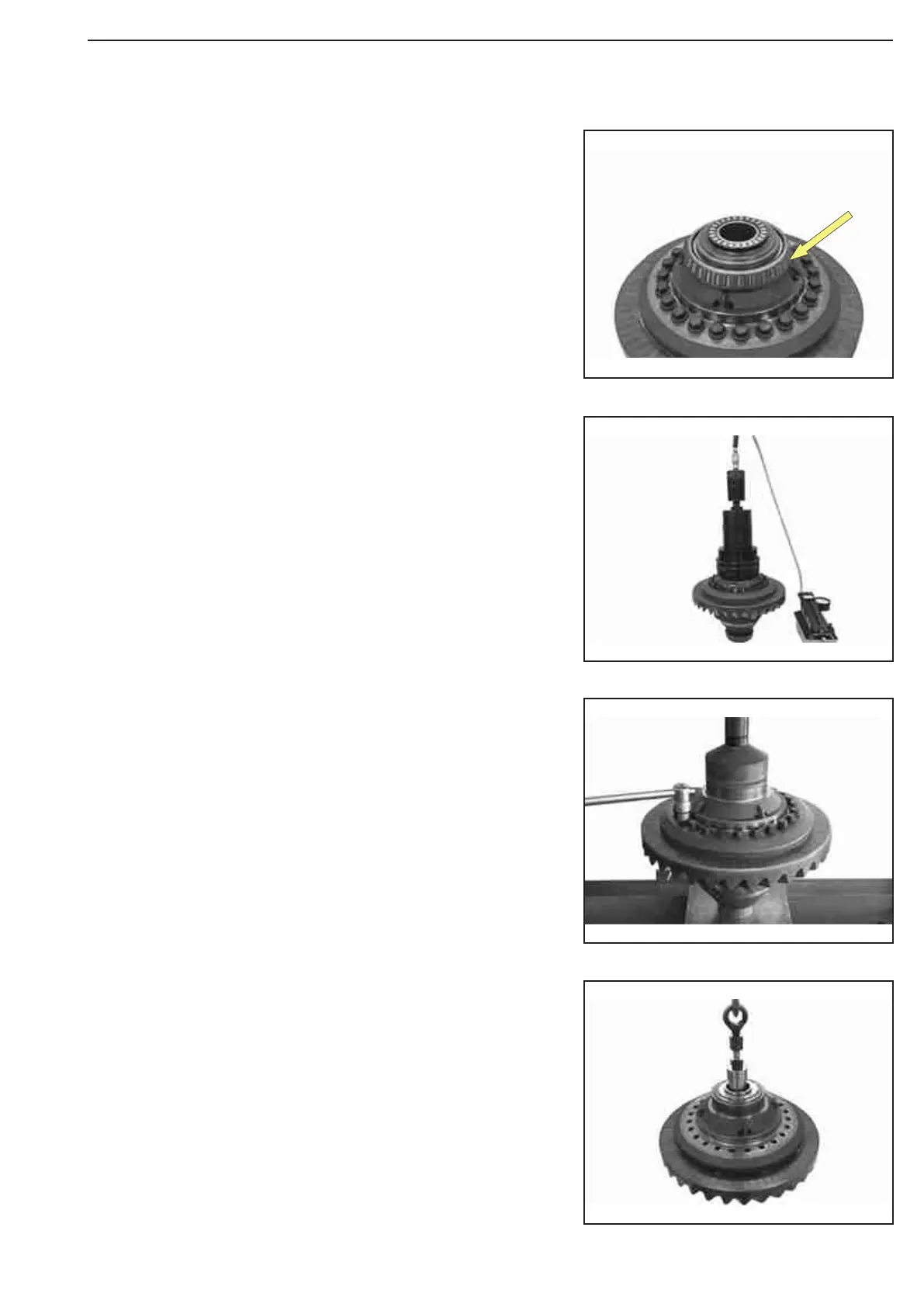

2.1 Multi-disk differential lock DHL-5000
Remove axial roller cage (arrow).
Pull both tapered roller bearings from the differential.
Crown wheel side
(S) Rapid grip 532230
(S) Basic tool 504246
(S) Pressure piece 532231
Opposite side:
(S) Grab sleeve 504247
(S) Basic tool 504246
(S) Clamping cylinder 532226
(S) Pump 532228
Preload the differential by means of the press and loosen
locking screws.
(S) Pressure piece 532231
Lift differential cover from differential housing by
means of the lifting device.
(S) Inner extractor 532218
(S) Eye nut 532220
Differentials
Disassembly
Figure 340
Figure 339
Figure 338
Figure 337
