SHOP MANUAL
DRIVE LINE
Ch 3 page 116 Ch 3 page 117
DRIVE LINE

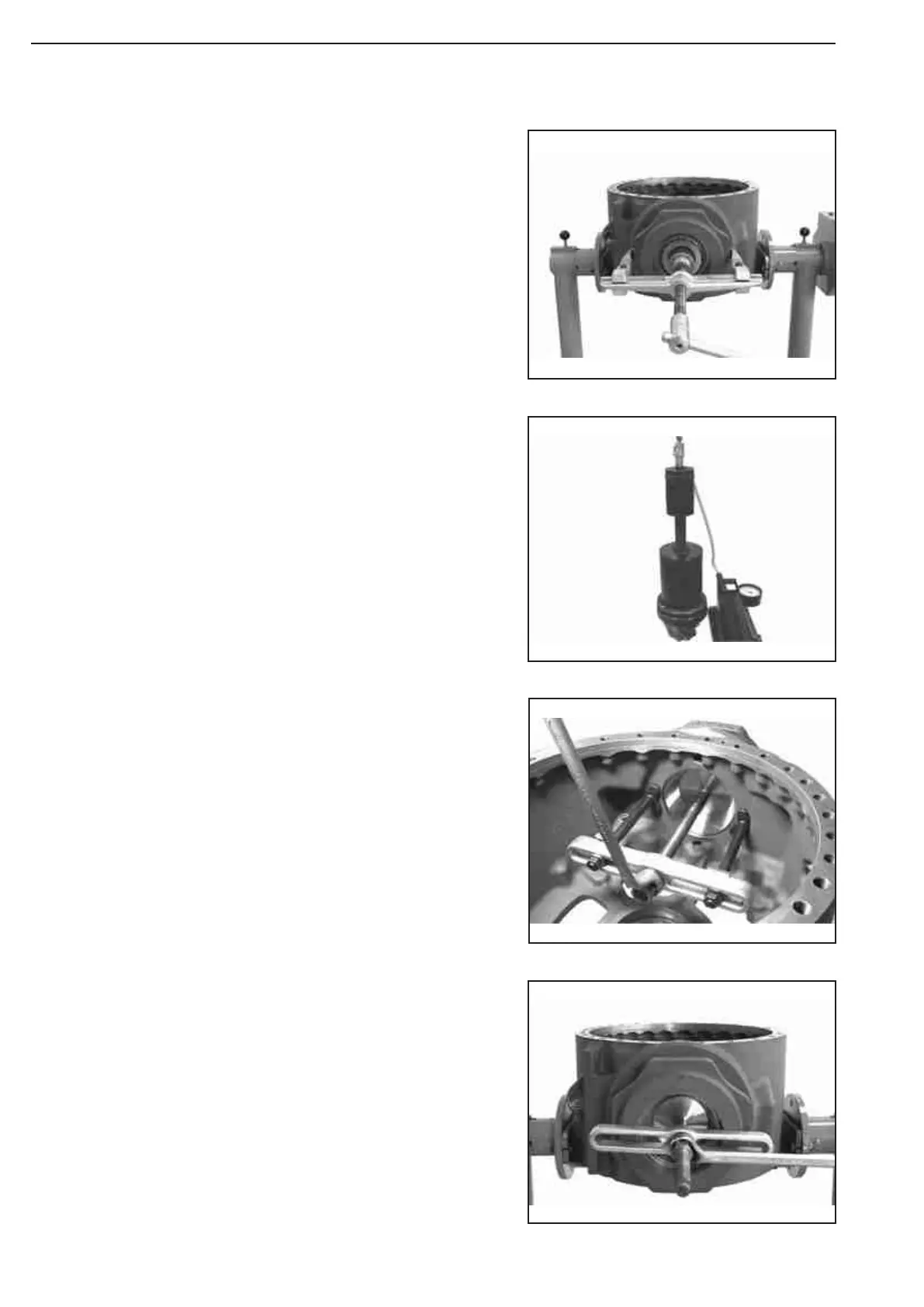

Use a two-armed puller to press the input pinion out of the
axle drive housing and remove the releasing tapered roller
bearing.
Remove the spacer and pull the tapered roller bearing from
the input pinion.
(S) Gripping device 532225
(S) Basic tool 532223
(S) Clamping cylinder 532226
(S) Pump 532228
If necessary, pull the inner bearing outer ring out of the
axle drive housing and remove the shim behind.
(S) Assembly fixture 532229
(S) Counter support 504206
If necessary, pull the external bearing outer ring out of the
axle drive housing.
(S) Assembly fixture 532229
(S) Counter support 504206
Disassembly
Figure 336
Figure 335
Figure 334
Figure 333
