SHOP MANUAL
DRIVE LINE
Ch 3 page 118 Ch 3 page 119
DRIVE LINE

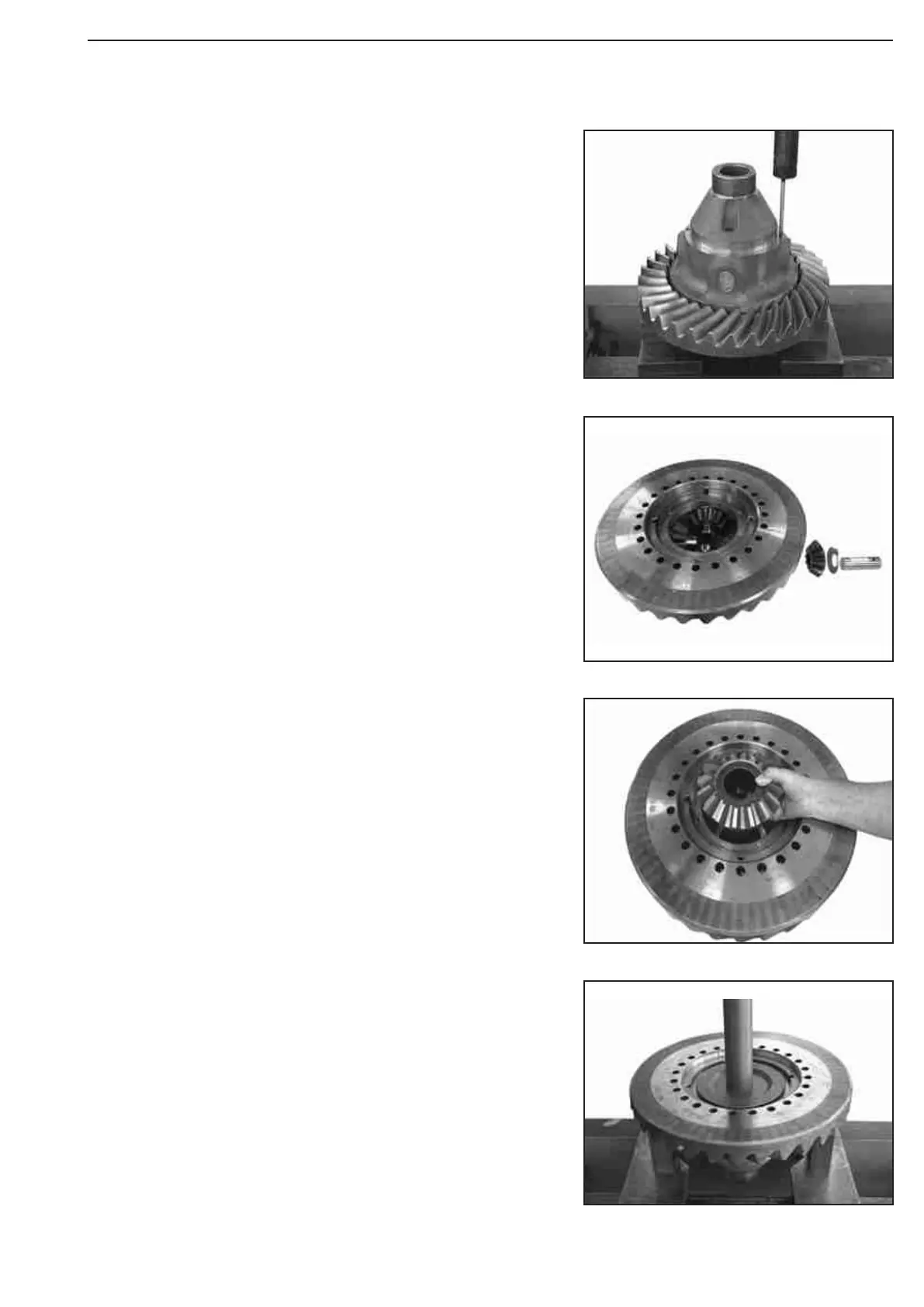

Pull spider shafts (4x) and remove the releasing
differential bevel gears with the thrust washers from the
differential housing.
Press out slotted pins (4x).
Remove axle bevel gears and the shims behind.
Support the crown wheel and press out differential
housing.
Disassembly
Figure 348
Figure 347
Figure 346
Figure 345
