DRIVE LINE
Pull both tapered roller bearings from the differential.
Crown wheel side
(S) Rapid grip 532230
(S) Basic tool 504246
(S) Pressure piece 532231
Opposite side:
(S) Grab sleeve 504247
(S) Basic tool 504246
(S) Clamping cylinder 532226
(S) Pump 532228
Preload the differential by means of the press and loosen
the locking screws.
(S) Pressure piece 532231
Lift differential cover from the differential housing by
means of the lifting device.
(S) Inner extractor 532218
(S) Eye nut 532220
Remove axle bevel gear with pressure ring, disk package
and thrust washers out of differential housing
Disassembly

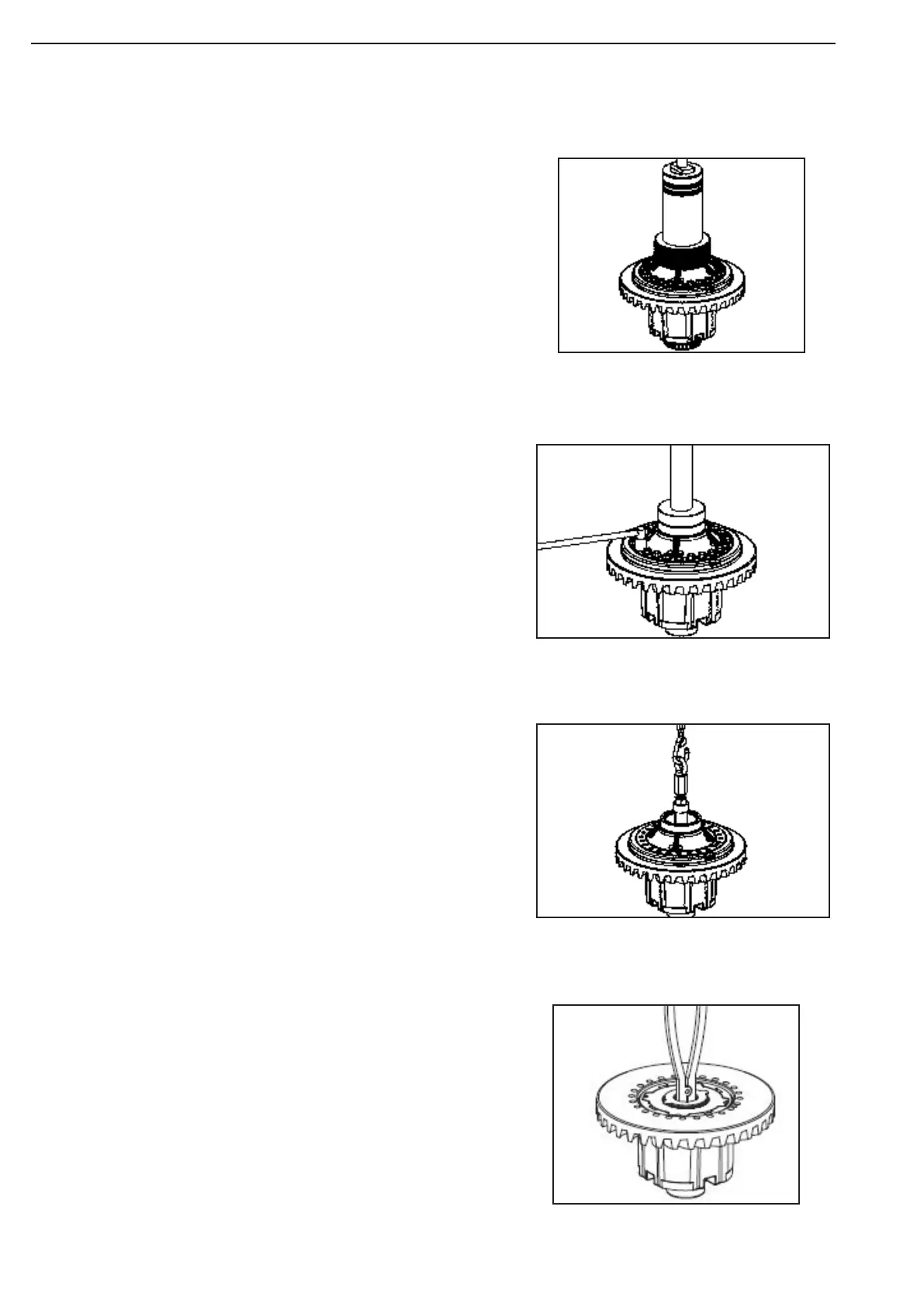

Figure 352
Figure 351
Figure 350
Figure 349
