SHOP MANUAL
DRIVE LINE
Ch 3 page 130 Ch 3 page 131
DRIVE LINE
Heat both tapered roller bearings and insert until contact is
obtained.
Adjust tapered roller bearing after cooling down!
Preload the differential by means of the press and bolt with
new locking screws.
Tightening torque (M16/12.9) MA = 400 Nm
(S) Pressure piece 532231
Mount two adjusting screws (S) and insert the differential
cover by means of a lifting device.
(S) Locating pins 504722
(S) Inner extractor 532218
(S) Eye nut 532220
Reassembly

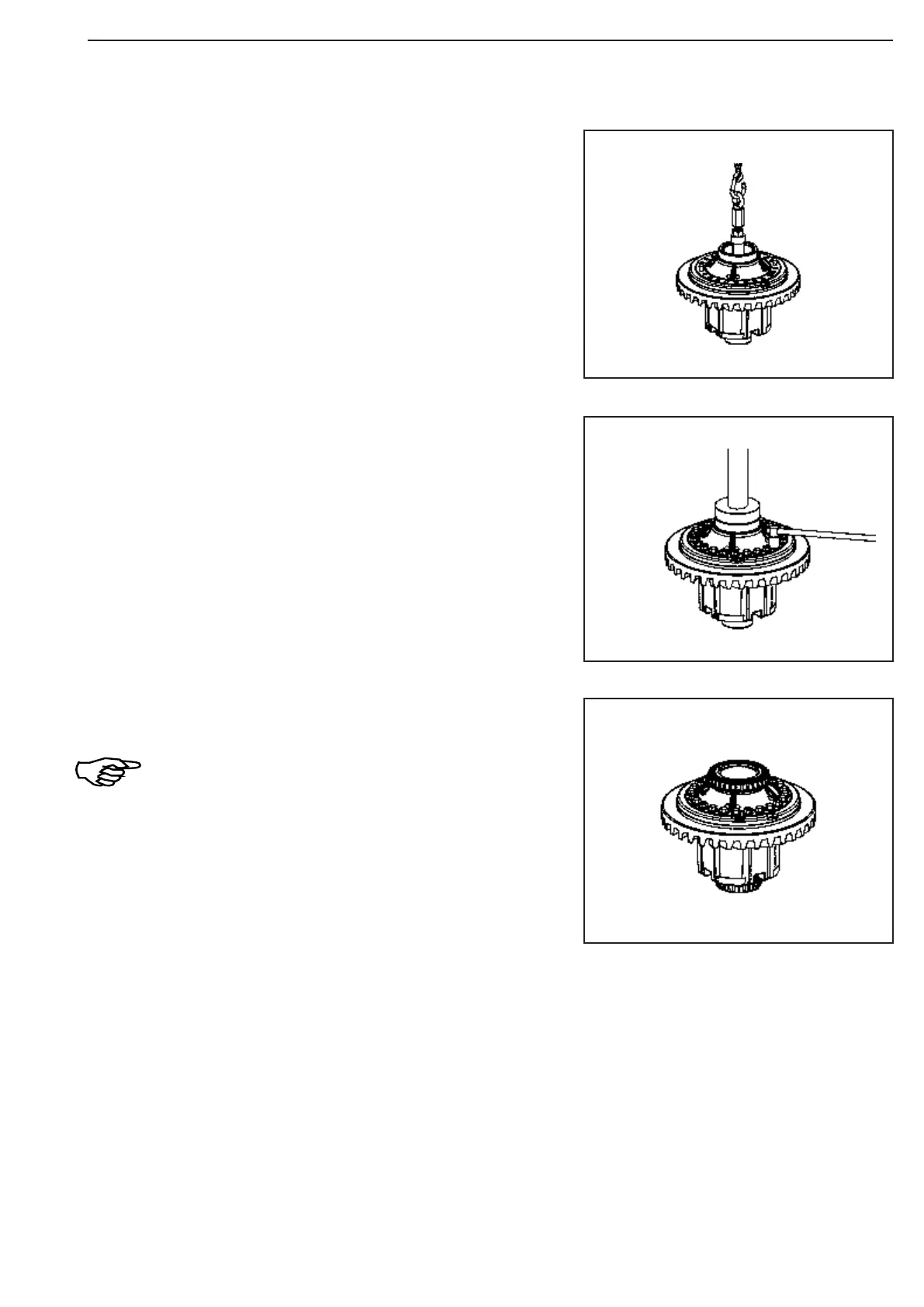

Figure 393
Figure 392
Figure 391
