SHOP MANUAL
DRIVE LINE
Ch 3 page 132 Ch 3 page 133
DRIVE LINE

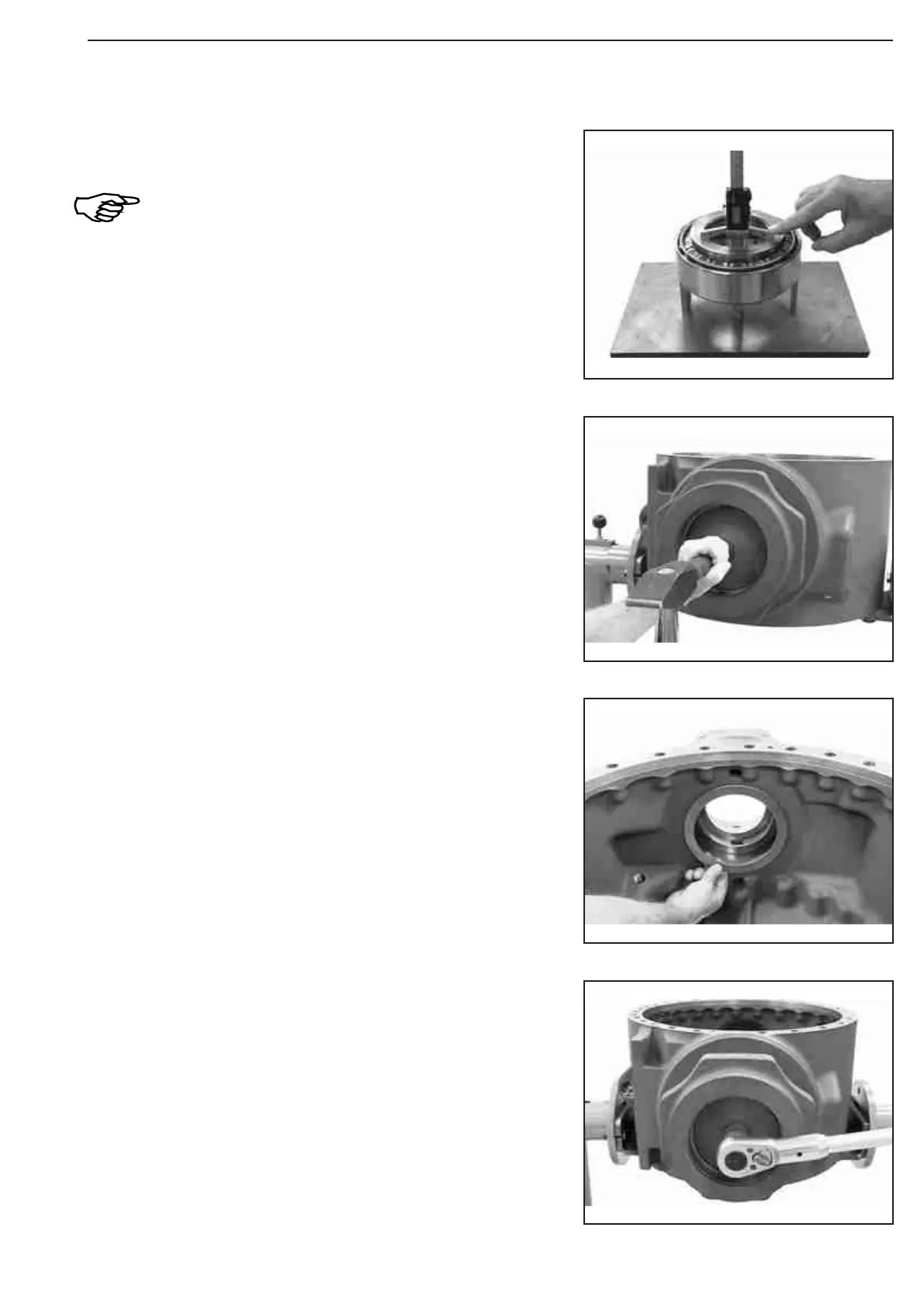

Undercool the internal bearing outer ring and bring it into
contact position in the housing hole by using the assembly
fixture (S).
(S) Assembly fixture 532233
Insert the determined shim e.g. s = 2.60 mm into the
housing hole.
Undercool the external bearing outer ring and insert it into
the axle drive housing until contact is obtained.
(S) Driver tool 532232
(S) Handle 504256
Determine dimension III (bearing width).
Dimension III e.g. 63.60 mm
Make sure that the rollers are located without any play
(rotate bearing inner ring several times in both
directions).
CALCULATION EXAMPLE:
Dimension I 331.25 mm
Dimension II - 265.00 mm
Dimension III - 63.60 mm
Difference = shim s = 2.60 mm
Reassembly
Figure 399
Figure 398
Figure 397
Figure 396
