SHOP MANUAL
DRIVE LINE
Ch 3 page 134 Ch 3 page 135
DRIVE LINE

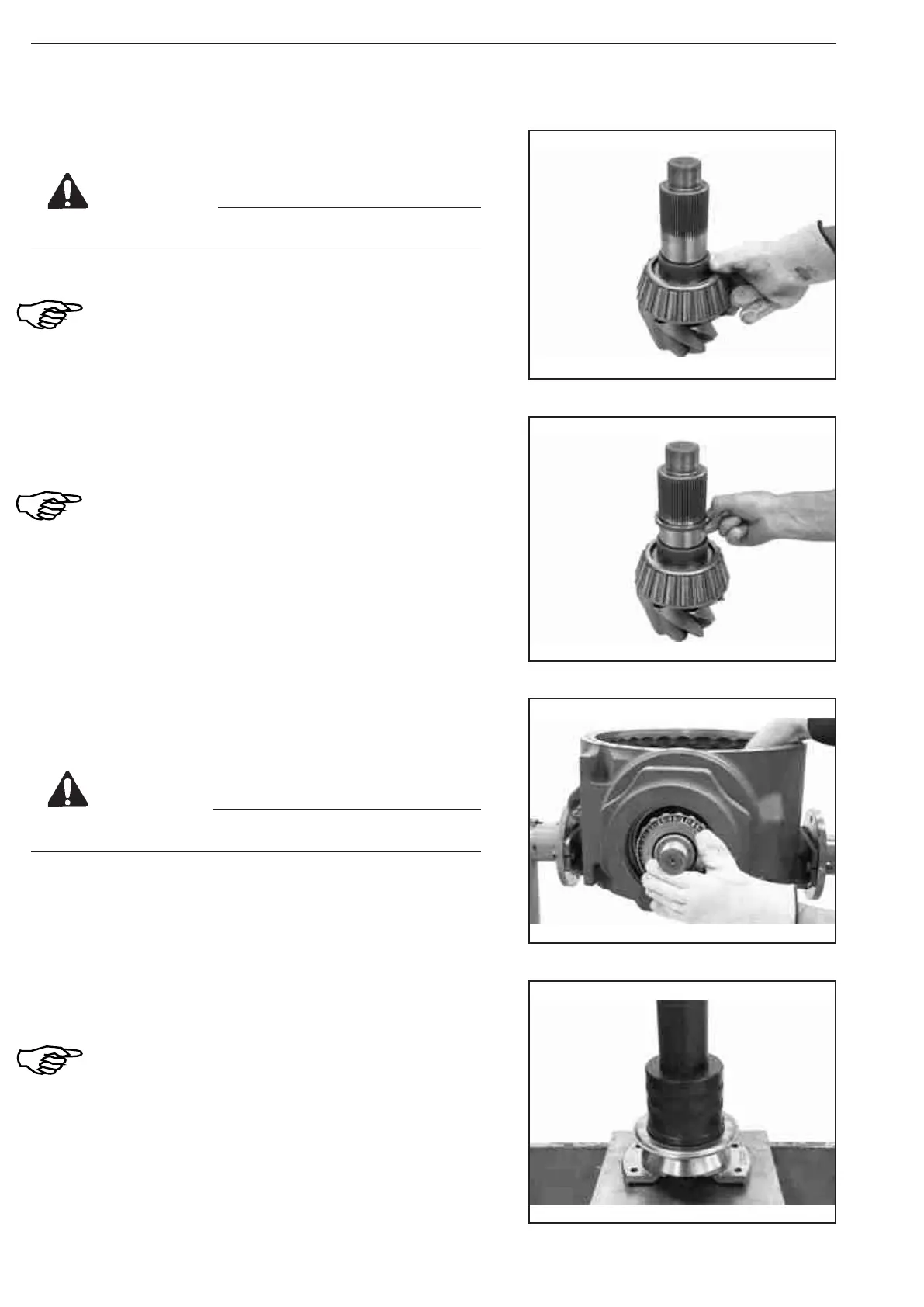

Heat the tapered roller bearing and insert it until contact is
obtained.
Adjust roller bearing after cooling down!
Set the rolling torque of the pinion bearing
1.5 … 5.0 Nm (without shaft seal).
Insert the spacer (e.g. s = 7.10 mm).
It is recommended to reuse the spacer which has been
removed during disassembly (e.g. s = 7.10 mm).
However, the decisive factor is the required bearing
rolling torque!
Insert the preassembled input pinion into the axle drive
housing and insert the heated bearing inner ring until
contact is obtained.
Press the protection plate onto the input flange until
contact is obtained.
Do not fit the shaft seal until the contact pattern has
been checked!
(page 140).
Reassembly
Risk of burn injuries, wear protective gloves!
Risk of burn injuries, wear protective gloves!
CAUTION
CAUTION
Figure 402
Figure 401
Figure 400
Figure 403
