SHOP MANUAL
DRIVE LINE
Ch 3 page 138 Ch 3 page 139
DRIVE LINE

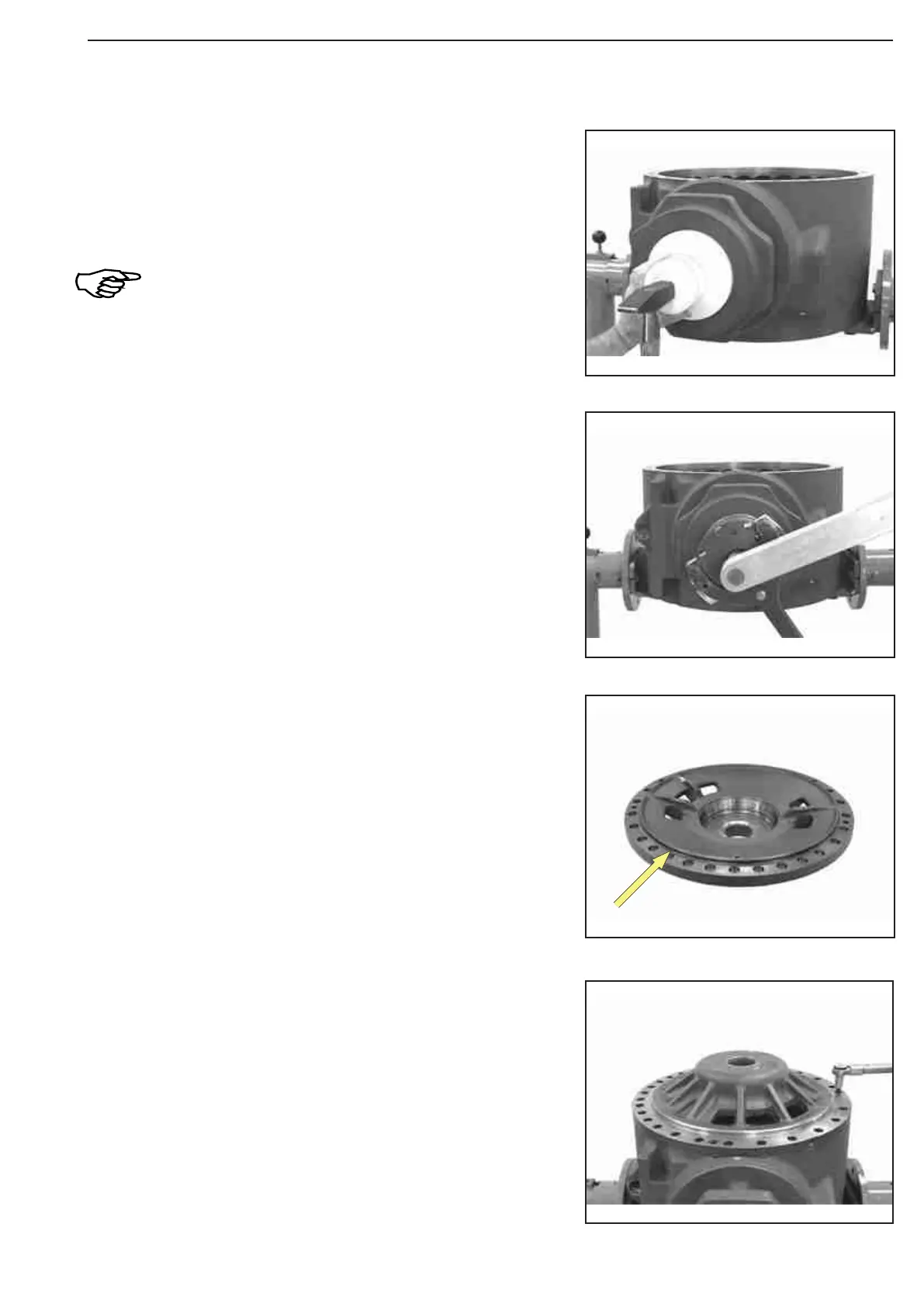

Wet the outer diameter of the shaft seal with spirit directly
before installation and fill the space between seal and dust
lip with grease!
Mount the shaft seal with the seal lip showing to the oil
chamber.
(S) Driver tool 532232
The exact installation position of the shaft seal is
obtained when using the specified driver tool (S)!
Insert input flange and disk.
Cover the thread of the slotted nut with Loctite 262 and
finally tighten the input flange.
Tightening torque MA = 1200 Nm
(S) Slotted nut wrench 8325
(S) Fixing device 532227
(S) Locking device 509110
Grease O-ring (see arrow) and insert it into the annular
groove of the bearing housing.
Insert the bearing housing by means of the lifting device
and finally tighten it with cylindrical screws.
Tightening torque (M12/10.9) MA = 115 Nm
Reassembly
Figure 423
Figure 422
Figure 421
Figure 420
