SHOP MANUAL
DRIVE LINE
Ch 3 page 138 Ch 3 page 139
DRIVE LINE

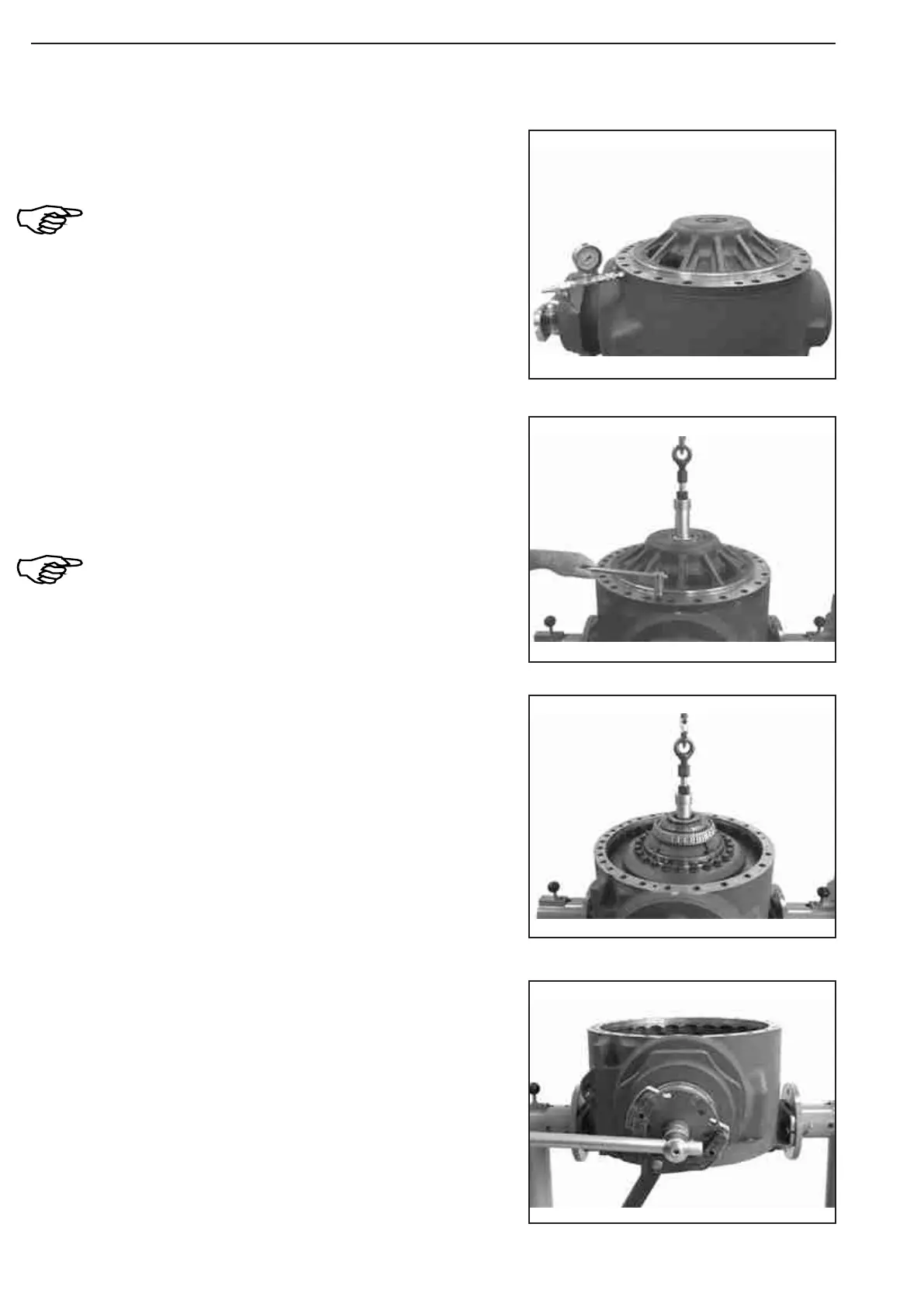

Leakage test of lock
Pressurize the lock (p = 1 bar), close shut-off valve and
remove air line.
No noticeable pressure loss is allowed to occur within
10 sec!
Operation is only necessary for version with DHL!
By rotating the input flange, roll crown wheel over the input
pinion in both directions several times.
Then remove the bearing housing again and lift the
differential out of the axle drive housing.
Compare the obtained contact pattern with contact pattern
examples Page 140-142.
In case of any contact pattern deviation, a measuring
error was made when determining the shim (Figure 398,
page 133), which must be corrected by all means!
After the contact pattern check insert the differential again
into the axle drive housing.
Reassembly of shaft seal (Figure 406 … 408)
Loosen slotted nut and pull the input flange from the input
pinion.
(S) Slotted nut wrench 8325
(S) Fixing device 532227
(S) Locking device 509110
Reassembly
Figure 419
Figure 418
Figure 417
Figure 416
