DRIVE LINE

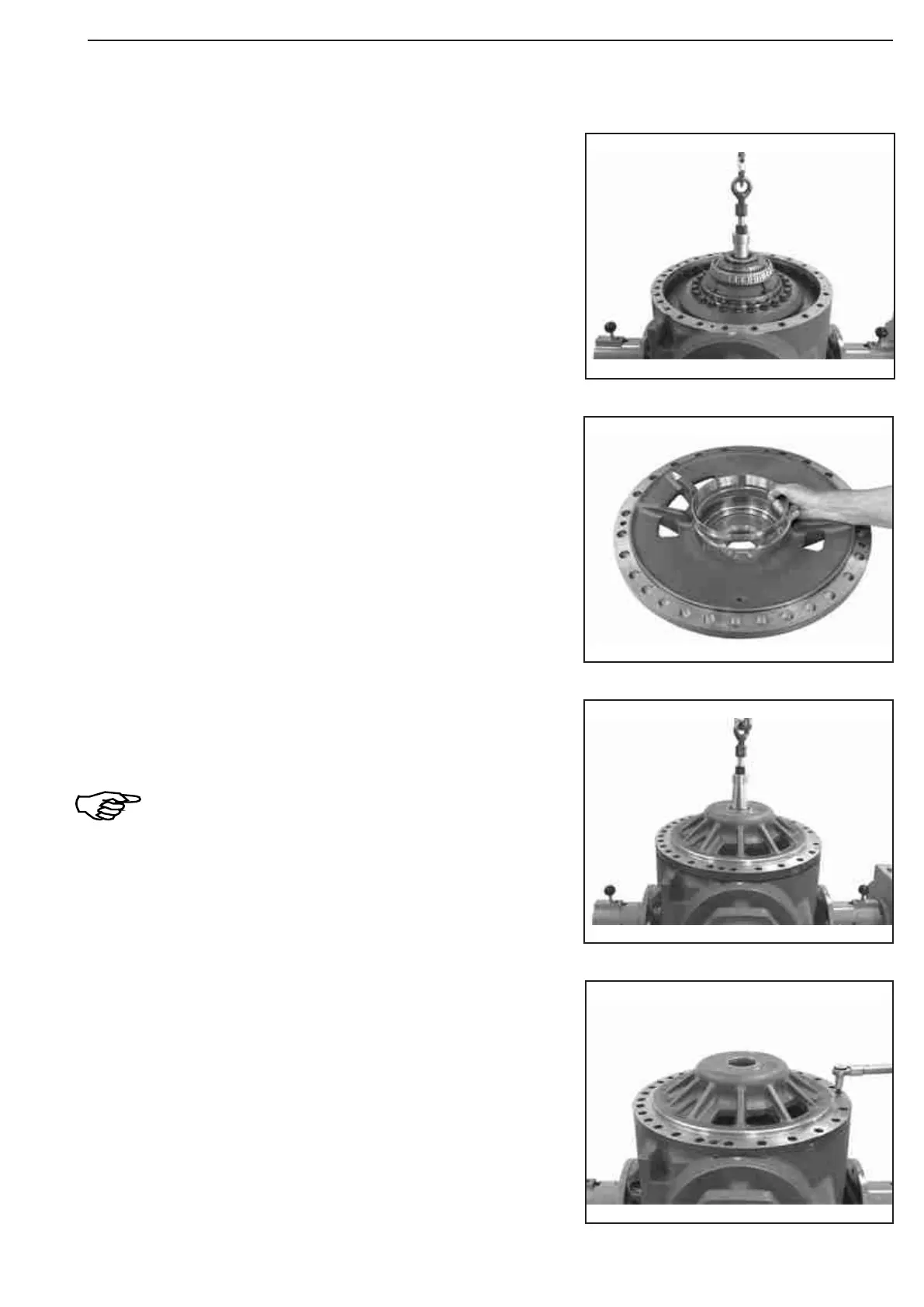

Cover some drive and coast flanks of the crown wheel with
marking ink.
Then insert the premounted differential into the axle drive
housing.
(S) Inner extractor 532218
(S) Eye nut 532220
Insert the determined shim (e.g. s = 1.5 mm) into the
bearing housing and reset the bearing outer ring until
contact is obtained.
Place the premounted bearing housing onto the axle drive
housing by means of the lifting device.
(S) Inner extractor 532218
(S) Eye nut 532220
Preliminarily mount the bearing housing without
O-ring.
Fix the bearing housing by means of cylindrical screws.
Tightening torque (M12/10.9) MA = 115 Nm
Reassembly
