SHOP MANUAL
DRIVE LINE
Ch 3 page 160 Ch 3 page 161
DRIVE LINE

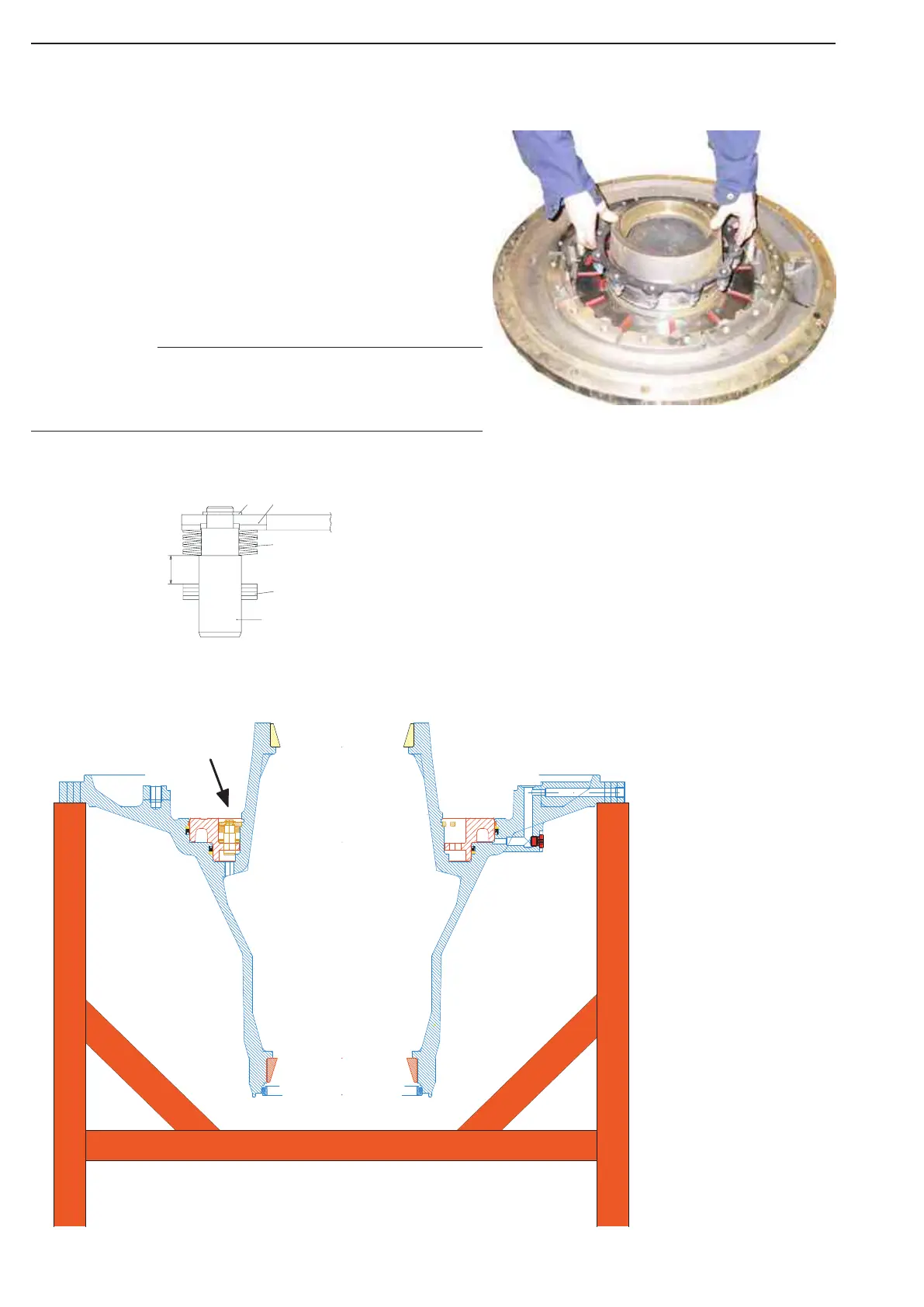

Be careful with seal the ring
Preassemble the return mechanism- piston
X
1
2
3
4
5
legend to the sketch:
1= pin
2= gripping rings
3= cup springs3 = Cup springs
4= Support shim4 = Support shim
5= Circlip5 = Circlip
X= Installation dimension gripping rings 8.2 +0.3mm
For details about pre-assembling of the return mecha-
nism, see in this chapter, front WDB hub assembly. Sec-
tion: Pre-assembly of the return mechanism.
Assemble the return mechanism (pre-assembled)
NOTE
Figure 482
Figure 481
