SHOP MANUAL
DRIVE LINE
Ch 3 page 160 Ch 3 page 161
DRIVE LINE

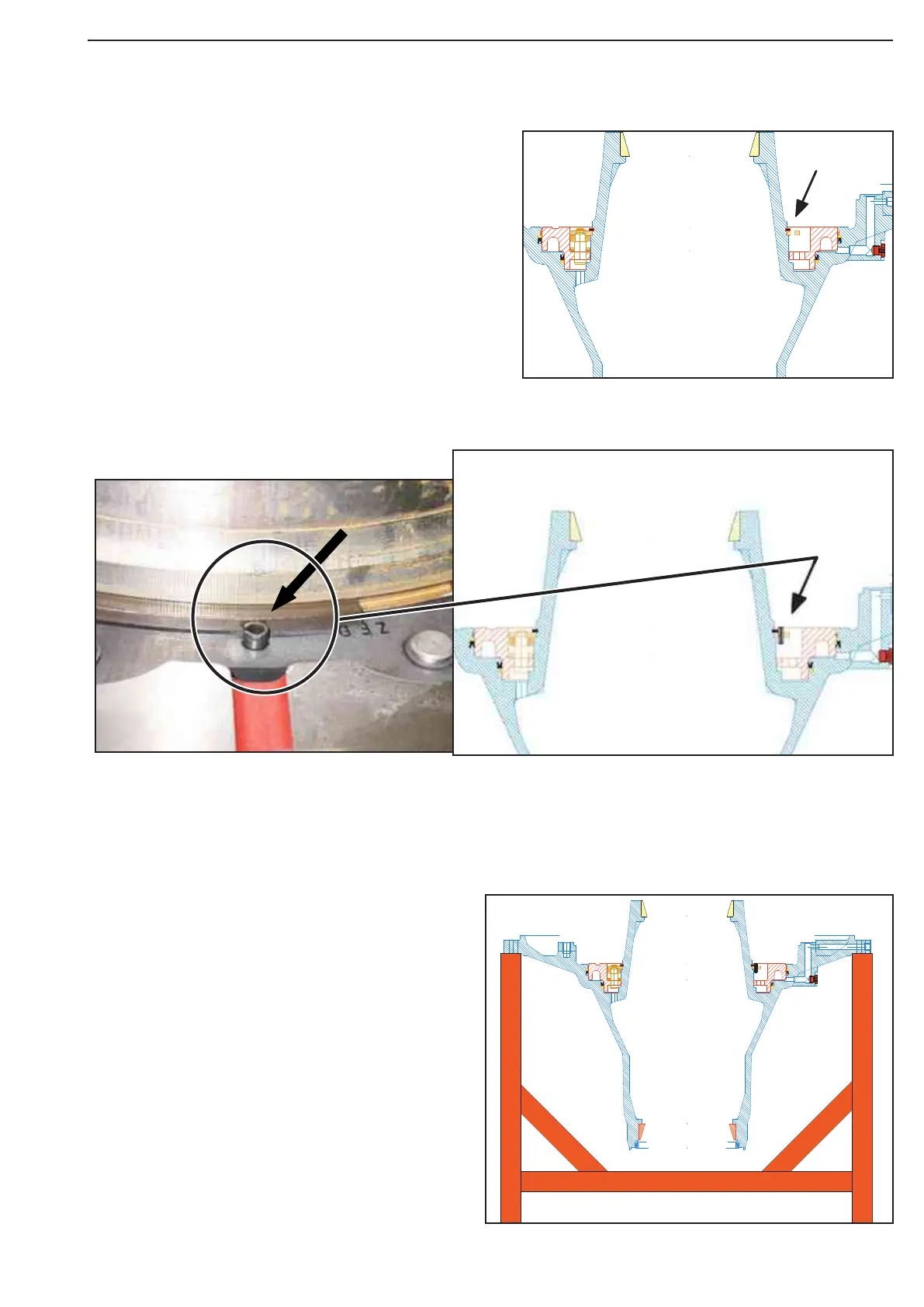

Clean the bearing surface and
assemble the bearing cup
Clean the surface and
assemble the seal ring
Be careful with the seal ring
Insert the plug
Assemble the lock ring Pos 29,
Secure with 6 pcs. slot pin Pos 28
See figure 483.
Turn the hub housing
180 ° while assembly
the bearing cup and
the seal
Clean the bearing surface and
assemble the bearing cup
Clean the surface and
assemble the seal ring
Place the hub in assembly rack after assemble
of the bearing cup and the seal ring.
Be careful with the seal ring
Insert the plug
Clean the bearing surface and
assemble the bearing cup
Assemble the guide ring
Pos 23-24
Assemble the piston ring
Pos 21 - 22
Figure 484
Figure 485
Figure 483
Figure 486
