SHOP MANUAL
DRIVE LINE
Ch 3 page 164 Ch 3 page 165
DRIVE LINE

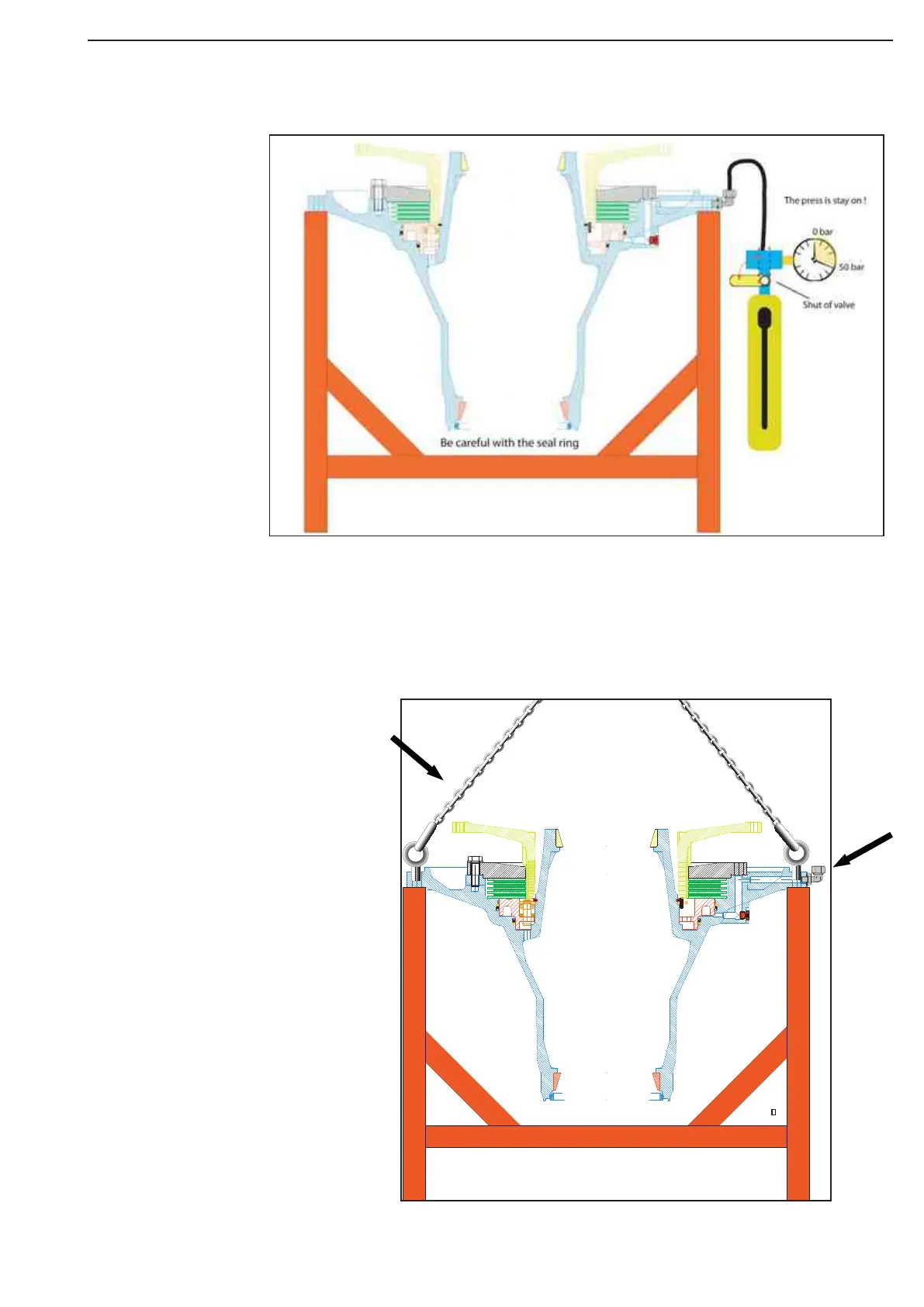

While the pressure
is on:
Remove the “Line
up tool”, lubricate
the parts and as-
semble the carrier.
Connect the lifting device.
Remove the pressure tool and as-
semble plug in the oil line.
Clean the bearing surface and
assemble the bearing cup
Clean the surface and
assemble the seal ring
Be careful with the seal ring
Insert the plug
Assemble the guide ring
Pos 23-24
Assemble the piston ring
Pos 21 - 22
Assemble the guide ring
Use glue: Loctite no.406
at both ends.
4
5
Clean the surface and
place the O-ring
Figure 495
Figure 496
