DRIVE LINE
Ch 3 page 190 Ch 3 page 191
DRIVE LINE
Use hammer and mandrel to knock out the bolt circa 20 mm
Pos.no. refers to the exploded drawing on previous side.
Disasseble the
bolt (pos33)
Take away the
pos. 29-32
33-34
Disassemble screw from bolt on the other side (pos 24)
M10x20 ISO4017-8.8 fzb
Disassemble screws from the same bolt on opposite side of
tandem unit
NOTE

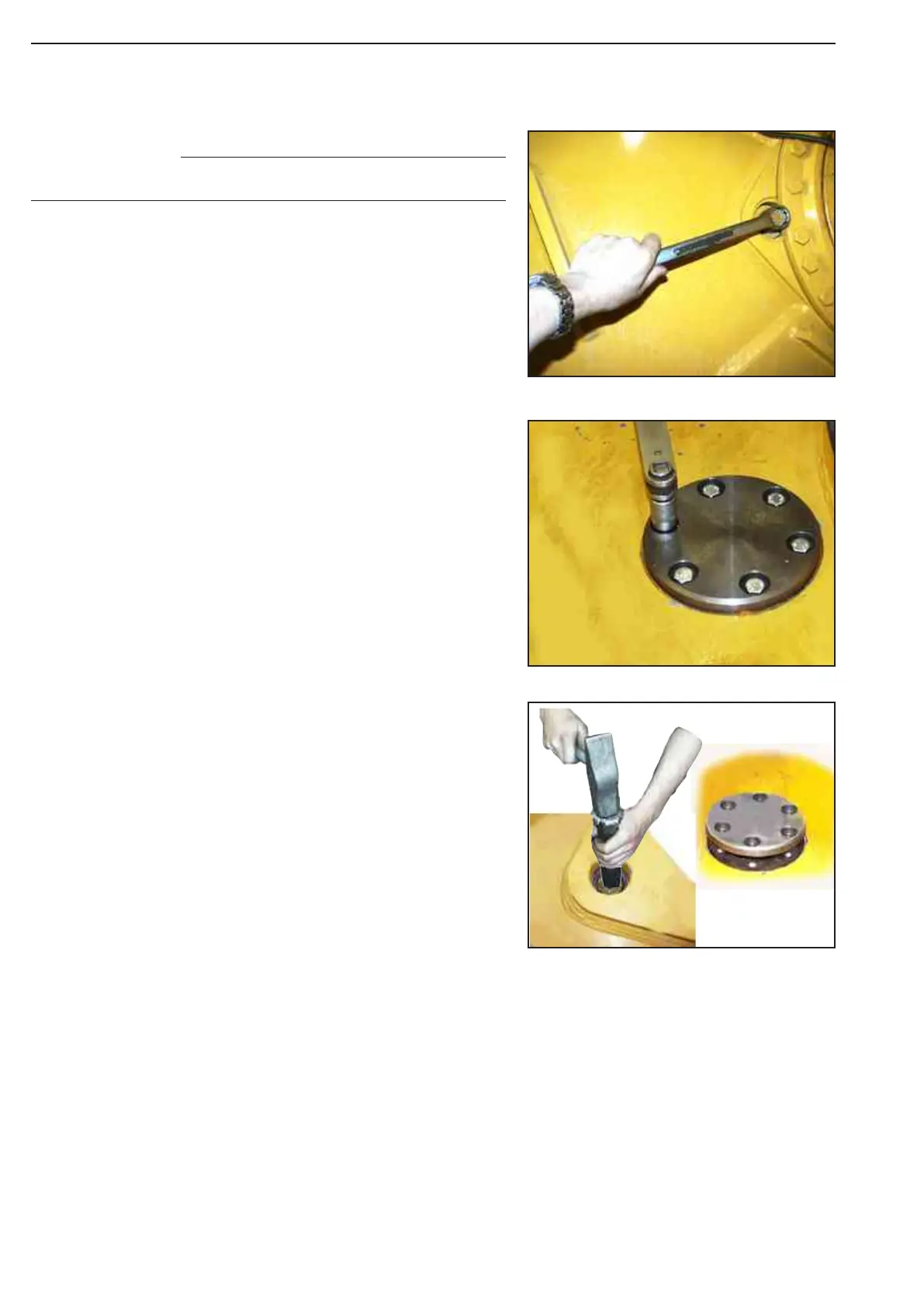

Figure 552
Figure 551
Figure 550
