SHOP MANUAL
DRIVE LINE
Ch 3 page 190 Ch 3 page 191
DRIVE LINE

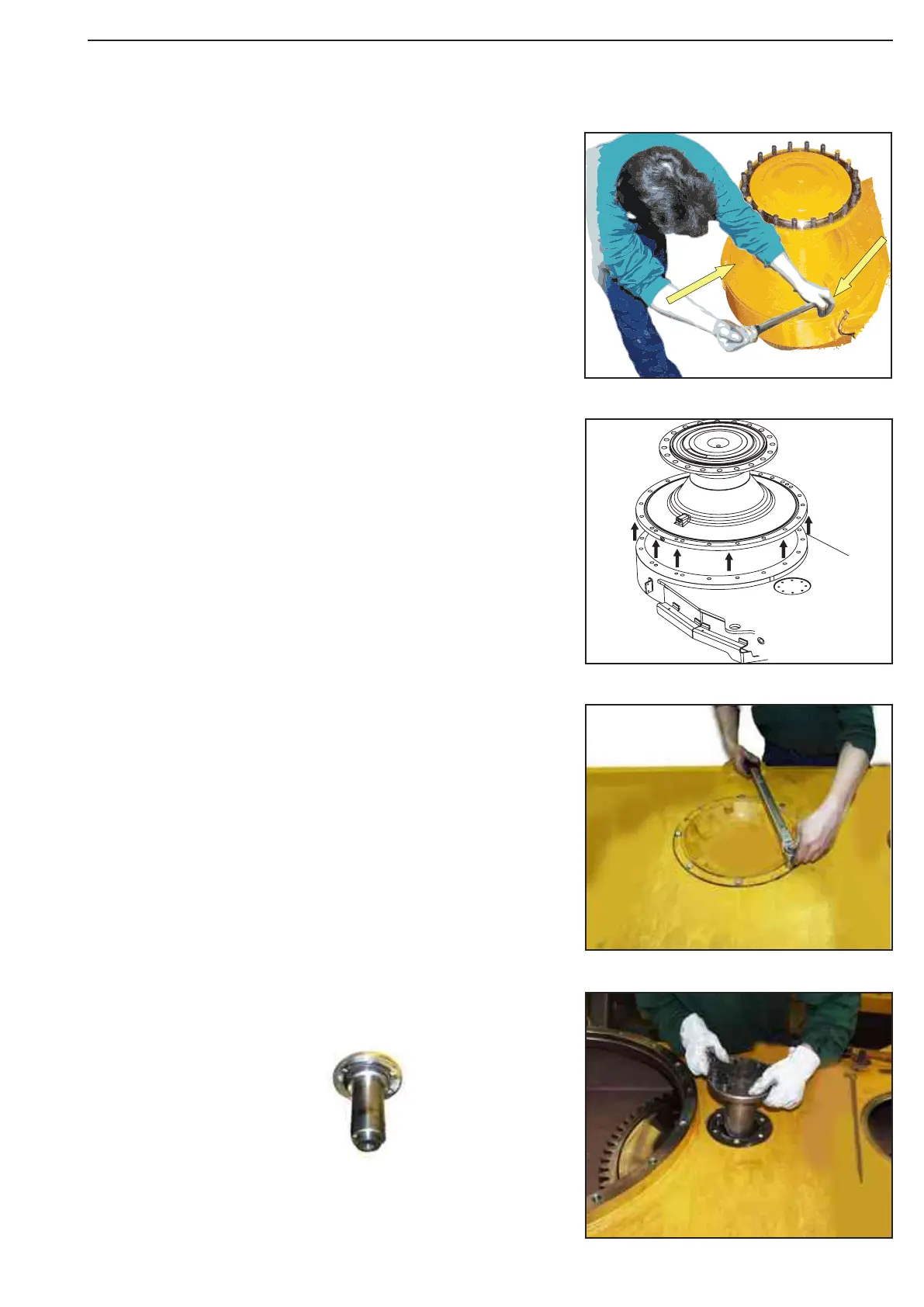

By using crane, lift the hub up from the tandem housing.
See the section for disassembling the wheel hub.
Disassemble cover for the pinion drive
Place the tandem housing with the inside down.
Disassemble 20 pcs screw
M16x60 ISO4014-10.9
Loosen the hub from the tandem housing by putting 2 screws
M12 or M16 into the tierce hole.
(See arrow)
Now take away the bolt for the idle gear.
Figure 563
Figure 556
Figure 555
Figure 554
Figure 553
