SHOP MANUAL
DRIVE LINE
Ch 3 page 192 Ch 3 page 193
DRIVE LINE

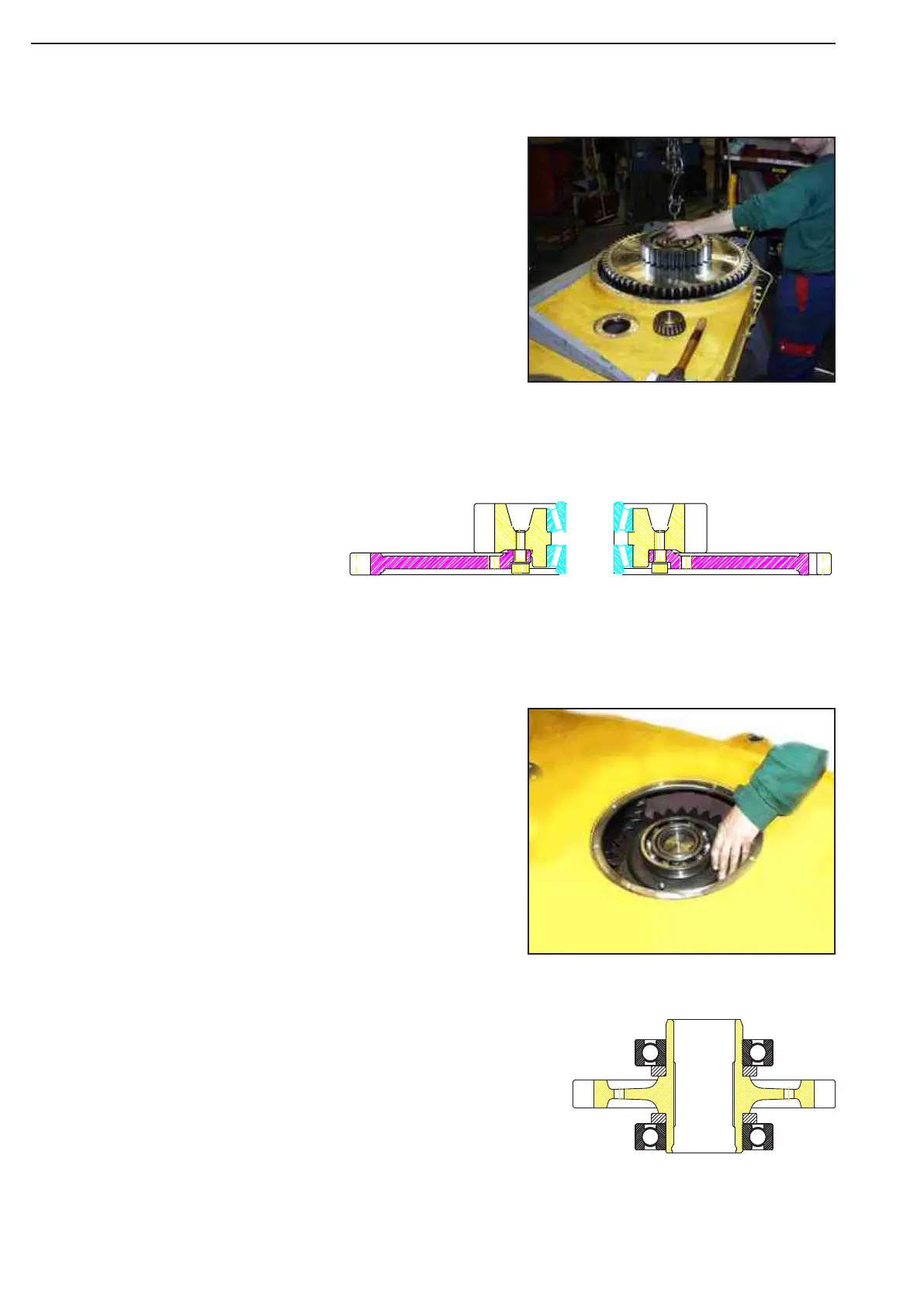

Lift out the piniong drive.
Move the idle gear to the side and by
lifting the device, take it out
Disassemble the conical roller bearing
Control the idle gear for damage.
Clean before assemblage.
Figure 559
Figure 557
Figure 558
Figure 560
