SHOP MANUAL
DRIVE LINE
Ch 3 page 194 Ch 3 page 195
DRIVE LINE

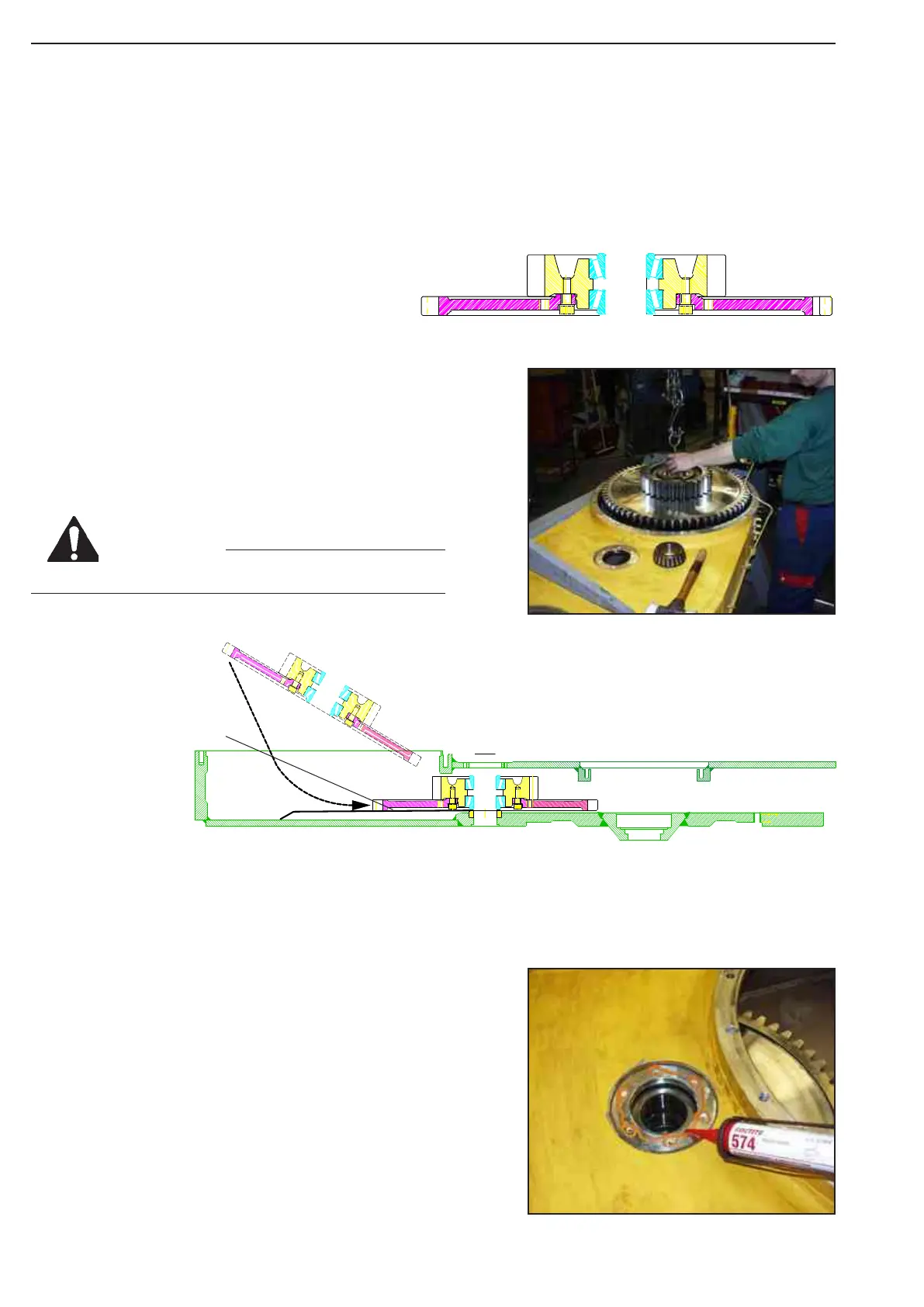

Prepare to install the idle gear.
Use steel plate (5 x 200 x 550 mm) to help skid the idle gear.
Bend the end of the plate so the end is 45 mm high
Use lifting device to install the idle gear to the tandem housing
Assemble the idle gears in the tandem house
Be aware of personal injury.
Pre-assemble the idle gear.
20 pcs, M16x45 DIN912-12.9
Apply locking liquid: Tree Bond 1374
Torque limit: 333 Nm
Assemble the bearing cup to the pinion drive. (Cool down to
-20°C before assembly)
Use plastic hammer to install the bearing cup.
Be aware that the bearing cup is at the bottom.
Place the roller bearing into the cup.
Keep the lowest bearing and guide the idle gear
into place in the tandem housing
Move the idle gear in position.
Take away the plate
Apply sealing compound on flange befor assembly the bolt.
Loctite 574
Assembly
plate
WARNING
Figure 565
Figure 566
Figure 568
Figure 567
