SHOP MANUAL
DRIVE LINE
Ch 3 page 194 Ch 3 page 195
DRIVE LINE
Fasten the bolt
Screw M10x25 ISO4017-10.9
Locking liquid:Tree Bond 1374
Torque limit: 68 Nm
Turn the tandem housing and place the shims for the
pre-tensioning
See the next page.
Line up the part and assemble the bolt
(It is advantageous to cool down the bolt to -20°C
before assembly)
Use plastic hammer to knock the bolt in.
Distance ring
Ball-bearing
Screws
Bolt
O-ring
Shims
Washer
Screw

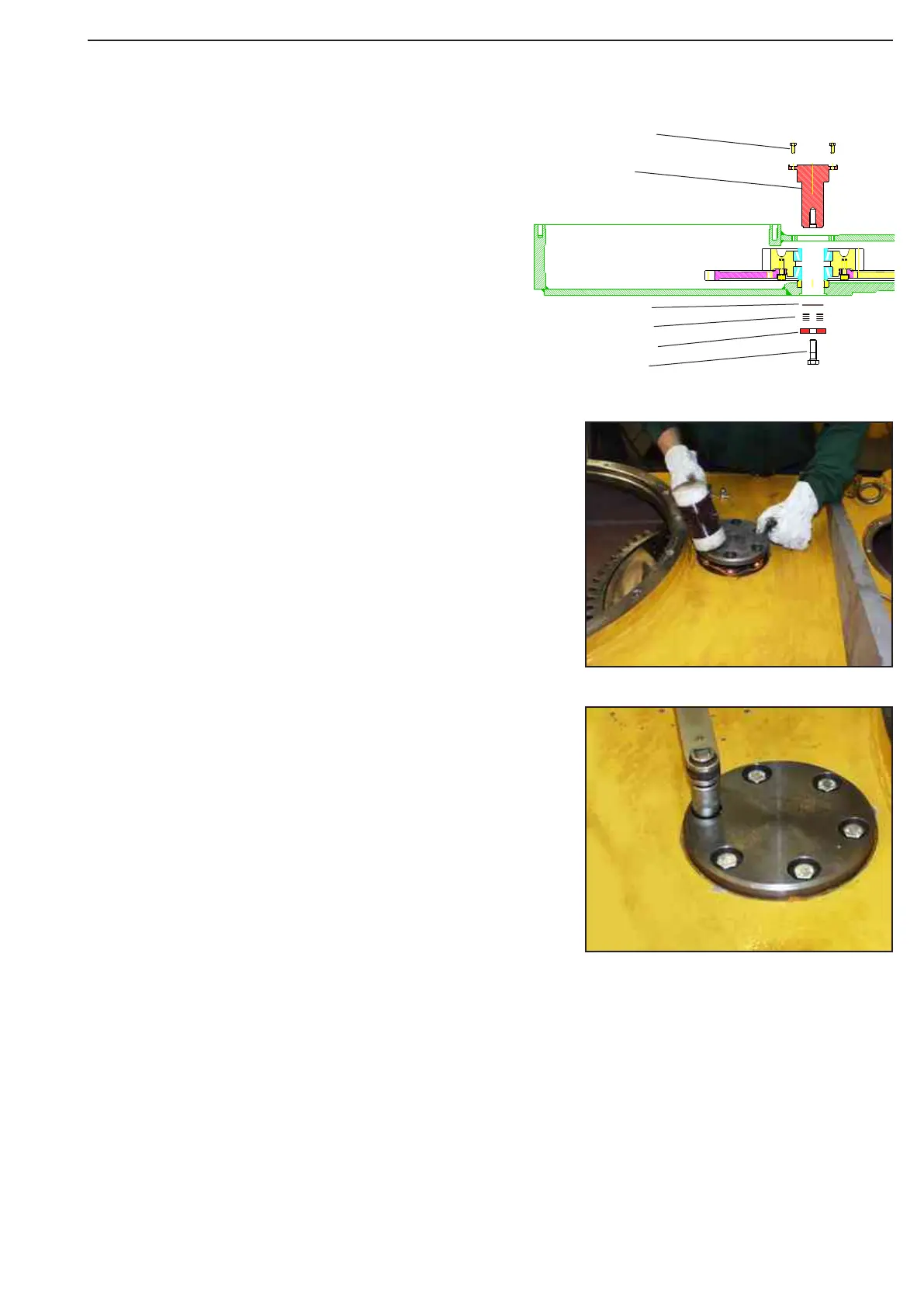

Figure 571
Figure 570
Figure 569
To Next Page
