SHOP MANUAL
DRIVE LINE
Ch 3 page 196 Ch 3 page 197
DRIVE LINE

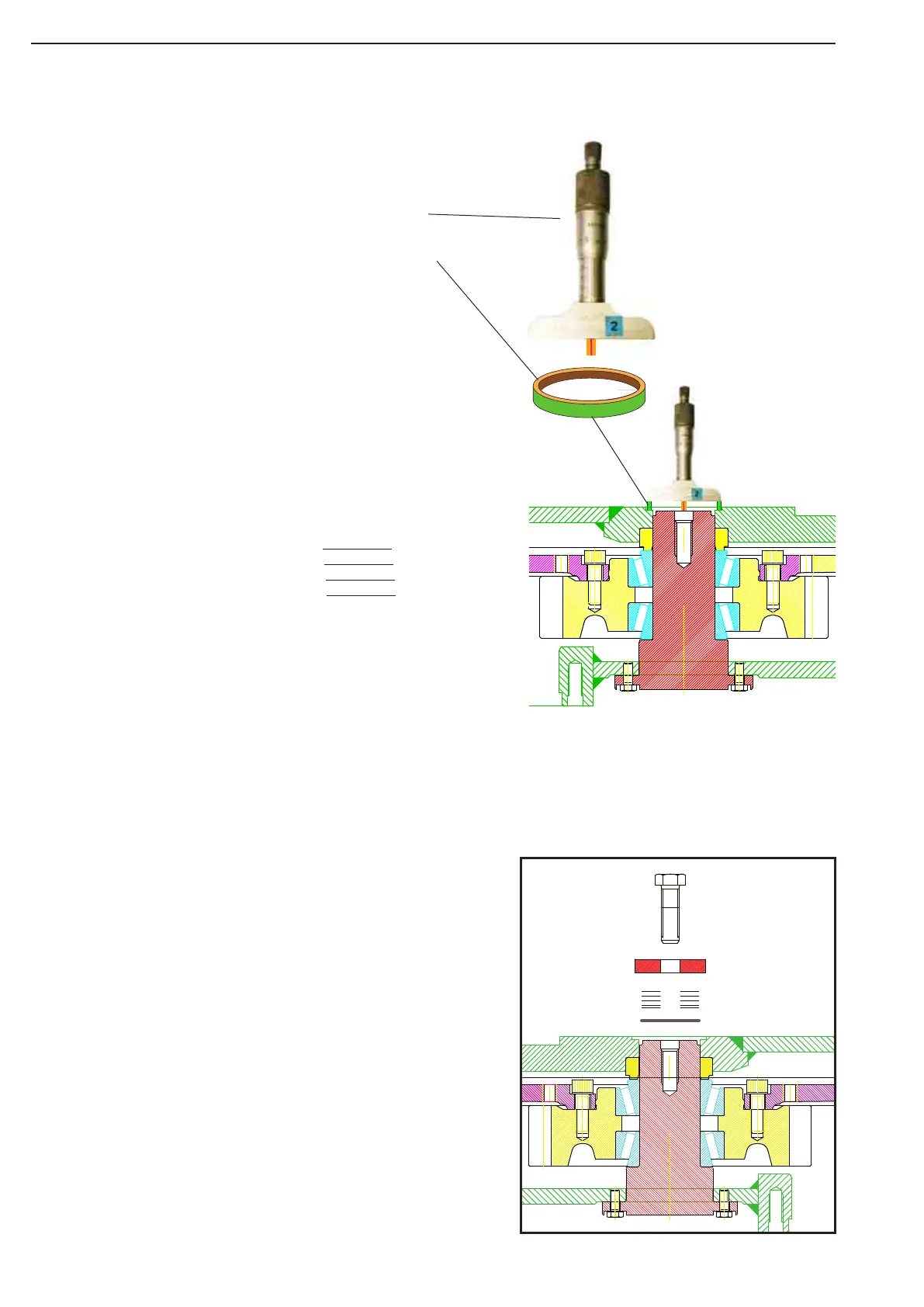

Assemble the pre-tensioning bolt.
Assemble the O-ring, calculated shim, plate, washer and screw
M20x50 ISO4017-10.9
Locking liquid:Tree Bond 1374
Torque limit: 541 Nm
Calculation example:
Measure to the bolt end....................... 11,45 mm
Less the ring 10mm............................ −10,00 mm
Difference............................................. 1,45 mm
Pre-tensioning .....................................− 0,05 mm
Necessary shim ................................... 1,40 mm
Available shim: 0,50 - 0,35 - 0,10 mm
Distance ring
Ball-bearing
Measuring equipment:
Micrometer 0 - 25 mm
Ring D 85 - d 70 x h10,00
Place the ring in the mashining groove, with the
micrometer measure distance from top of the ring
an to the bolt.
Figure 572
Figure 573
