Doosan DA40 - Page 595

SHOP MANUAL
HYDRAULIC
Ch 5 page 14 Ch 5 page 15
HYDRAULIC
Posion Descripon Part no. Head/socket Torque
27

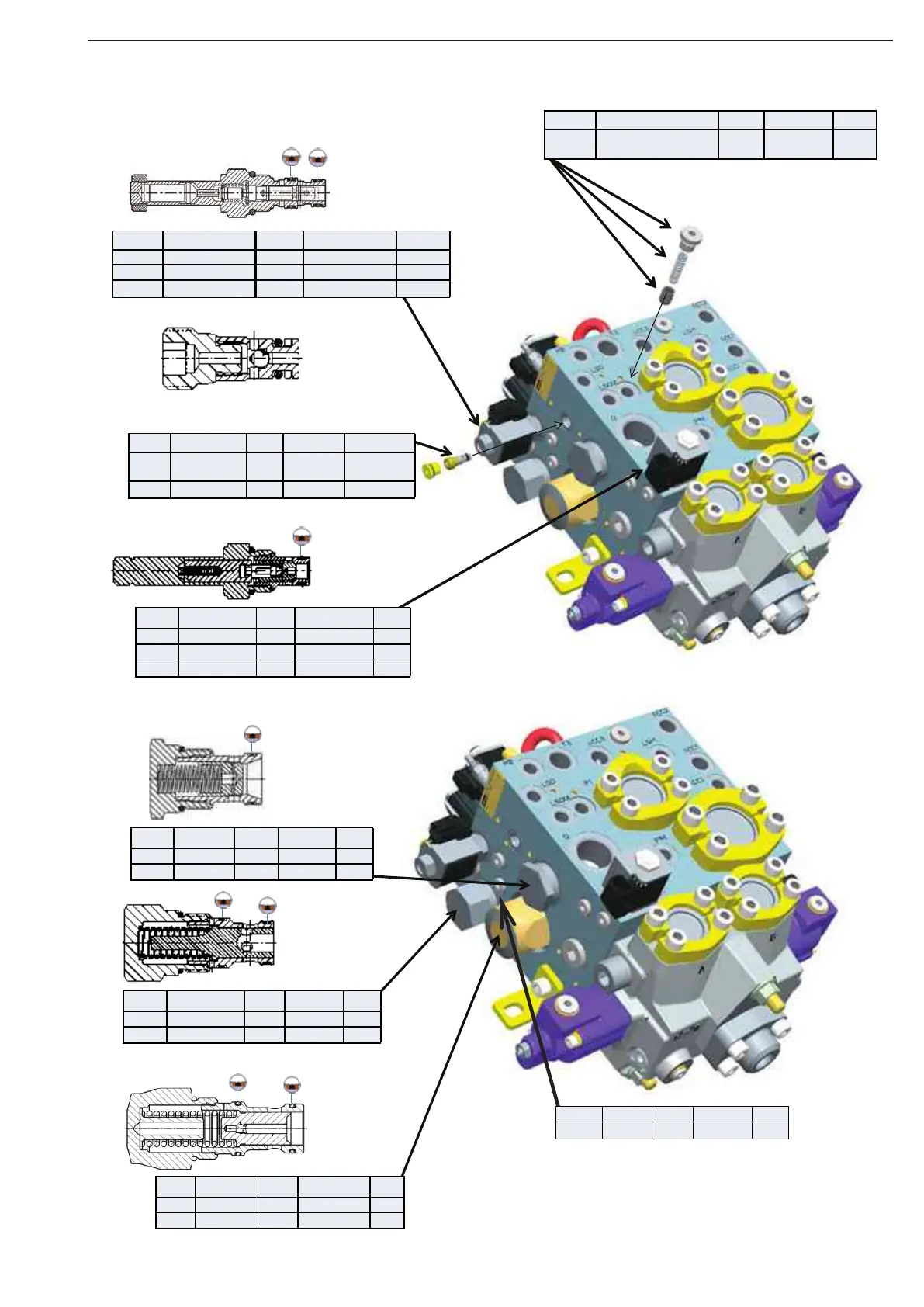

Flow Control Valve
(Poppet, Spring, Plug)
6mm 30Nm
Posion Descripon Part no. Head/socket Torque
1 Solenoid valve 7/8” (22,2mm) 30Nm
Coil 3/4” (19,0mm) 3,5Nm!
Seal Kit
Posion Descripon Part no. Head/socket Torque
16 Shule valve
5mm 10Nm
+Locking uid
Seal Kit
Posion Descripon Part no. Head/socket Torque
30 Solenoid valve 7/8” (22,2mm) 45Nm
Coil 3/4” (19,0mm) 8Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
13 Check valve 38mm 100Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
28 Logic element 38mm 100Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
14 Logic element 1 7/8” (47,6mm) 140Nm
Seal Kit
Find information about each
part in the parts catalog
Posion Descripon Part no. Head/socket Torque
26 Blende M6 ø0,6
