SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 26 Ch 7 Page 27
FRONT WAGON
.
Be aware of personal injury

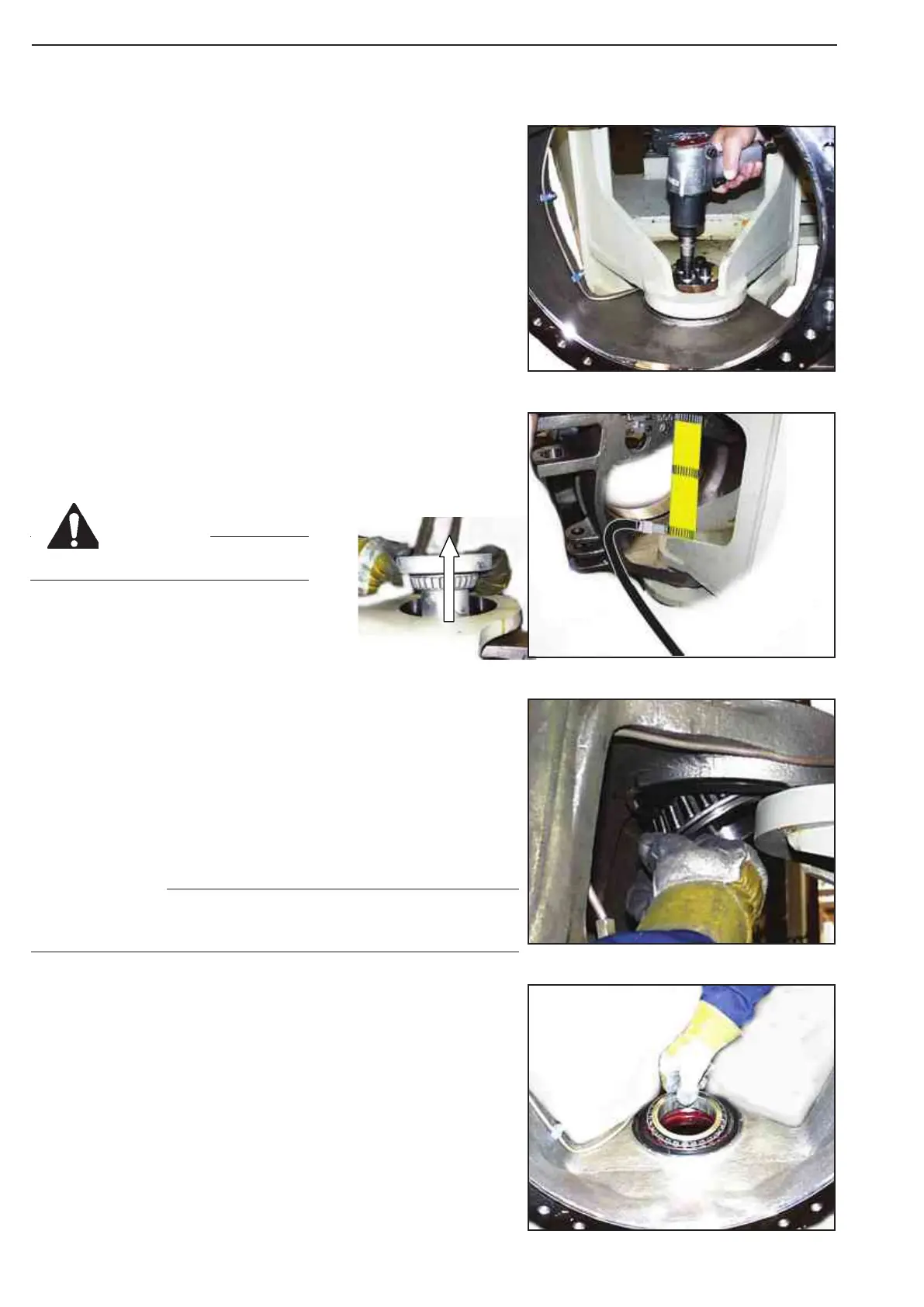

Disassemble the screws from the upper and lower articulation
hinge bolt. Save the shims for re-use.
CAUTION
Tap the upper and lower bolt using a soft mallet.
if necessary, use a hydraulic cylinder, press out the upper and
lower bolt. Bolts approximately 15kg
Free the hinge by pulling forwards, and out from the rear wagon.
Separate and lift the articulation hinge of the rear frame.
Remove the four bearings and the distance ring from the hinge.
Check the condition of the seal rings for possible re-use.
Catch the lower bearing for the upper and lower bolt when
remowing the articulation hinge.
NOTE
Clean the articulation hinge and the front end of the rear frame
Figure 55
Figure 54
Figure 53
Figure 52
