FRONT WAGON
Articulation Hinge Bearings
Bearing
Bearing
Distance
Ring
Seal Ring
Seal Ring

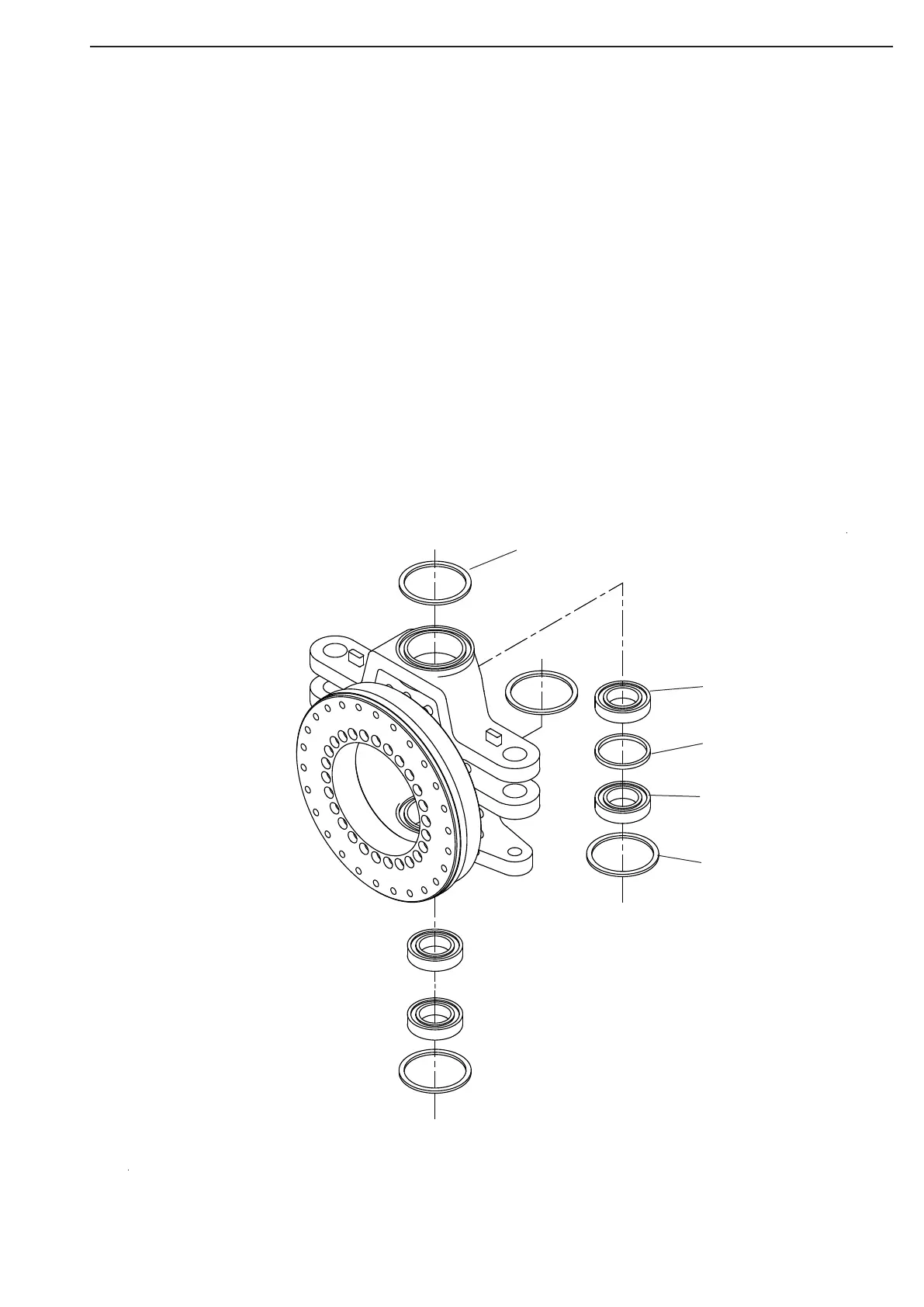

Figure 56
Remove the four bearings and the distance ring from the hinge.
Check the condition of the seal rings for possible re-use.
Installation
Install new seal rings if necessary.
Install the four bearings and the distance ring in the hinge.
Position the articulation hinge on rear frame, and install the hinge bolts.
Secure the bolts by installing shims and retainers.
Tighten the four bolts on each hinge bolts.
Replace lubrication lines.
Engage articulation lock.
Connect the steering cylinders by installing the front pivot bolts.
Join the front wagon and the rear wagon.
Control
Check that all parts are located as before removal.
Perform a test drive to check that the articulation bearing is functioning properly.
