FRONT WAGON
Assemble the bearing in the upper part of the articu-
lation hinge.
See figure1 on previous page.
Cool down the bearing cup (−20°C)
(See figure 2 for correct position of the bearing cup
and V-ring)
Insert the bearing cup Pos.3
Insert the distance ring Pos.2
Insert the bearing cup Pos.3
Assemble the V-ring, Pos.5
Apply glue in the groove
Glue: Loctite 406
Insert the V-ring in the groove
The distance ring, Pos 2, in the lower ear, is a
part of the articulation hinge and it is not movable.
When inserting the two bearing cups, press the bear-
ing cups
until they stops onto the ring Pos.2.

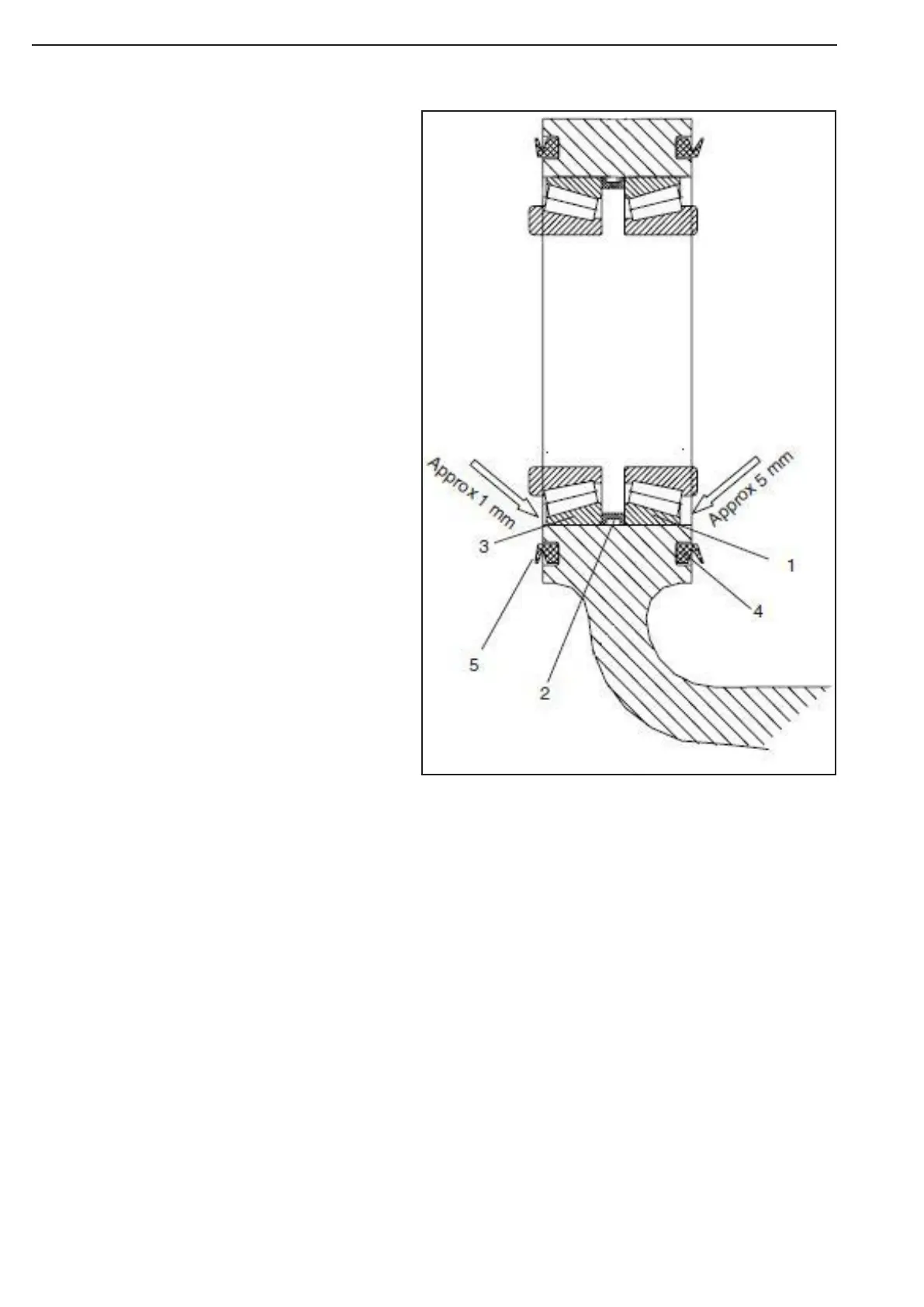

Figure 57
