SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 28 Ch 7 Page 29
FRONT WAGON

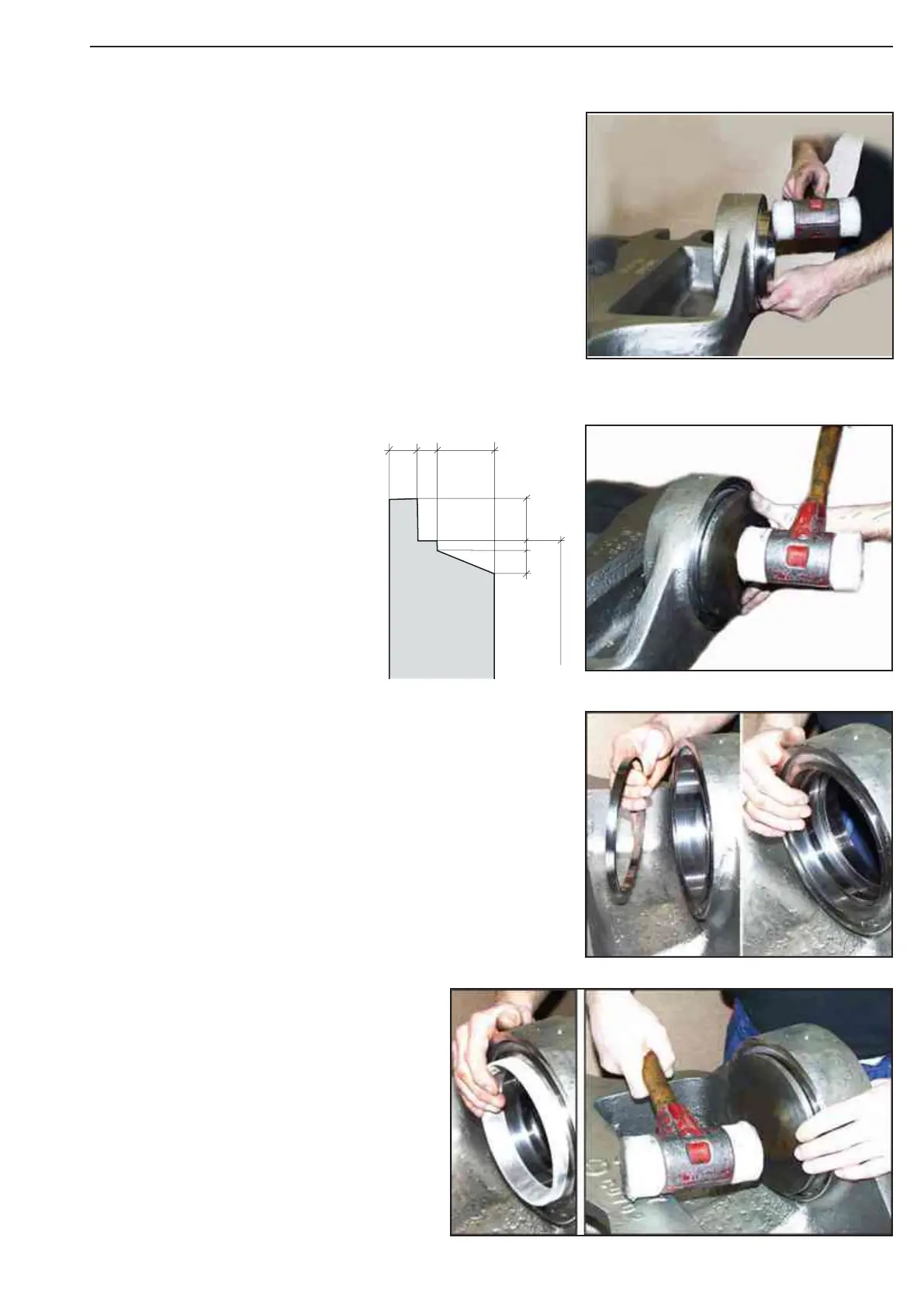

Cool down the bearing cups (approx -20°C) 4 pcs. Insert the outer
bearing cup.
Press the bearing cup into
the
articulation hinge.
With the plate, press the
bearing cup
approx 1 mm under the
outer surface.
See figure 2 arrow
By hand, place the distance ring in the
articulation hinge upper ear.
Figure 61
Figure 60
Figure 59
Figure 58
149,5
6
8
4
