Be aware of the risk of injury to people and equipment when handling heavy objects!
When both arms are removed, attach the crane to the tail gate lifting eyes, loosen clamps, and lift off the tail
gate.
To take apart the tail gate bearings, remove the six screws securing the cover. Remove the four screws secur
ing the bearing retainer plate, and tap out the hinge pivot.
Remove the circlip and tap out the bearing.
Thoroughly clean the internal parts.
Assembly
Check the condition of each arm bearing housing and bearing. Lubricate and insert the bearing. Secure with
circlip.
Insert the hinge pivot and secure with the bearing retainer plate by tightening the four screws.
Pack bearing housing with grease, and close with the bearing cover, secured by six screws.
Check the condition of the tail gate rubber cushions, replace if worn.
Bolt
Bearing support
Shim
Tail Gate Arm
Bearing
Circlip
Retainer Plate
Cover
Tail Gate Bearing
WARNING

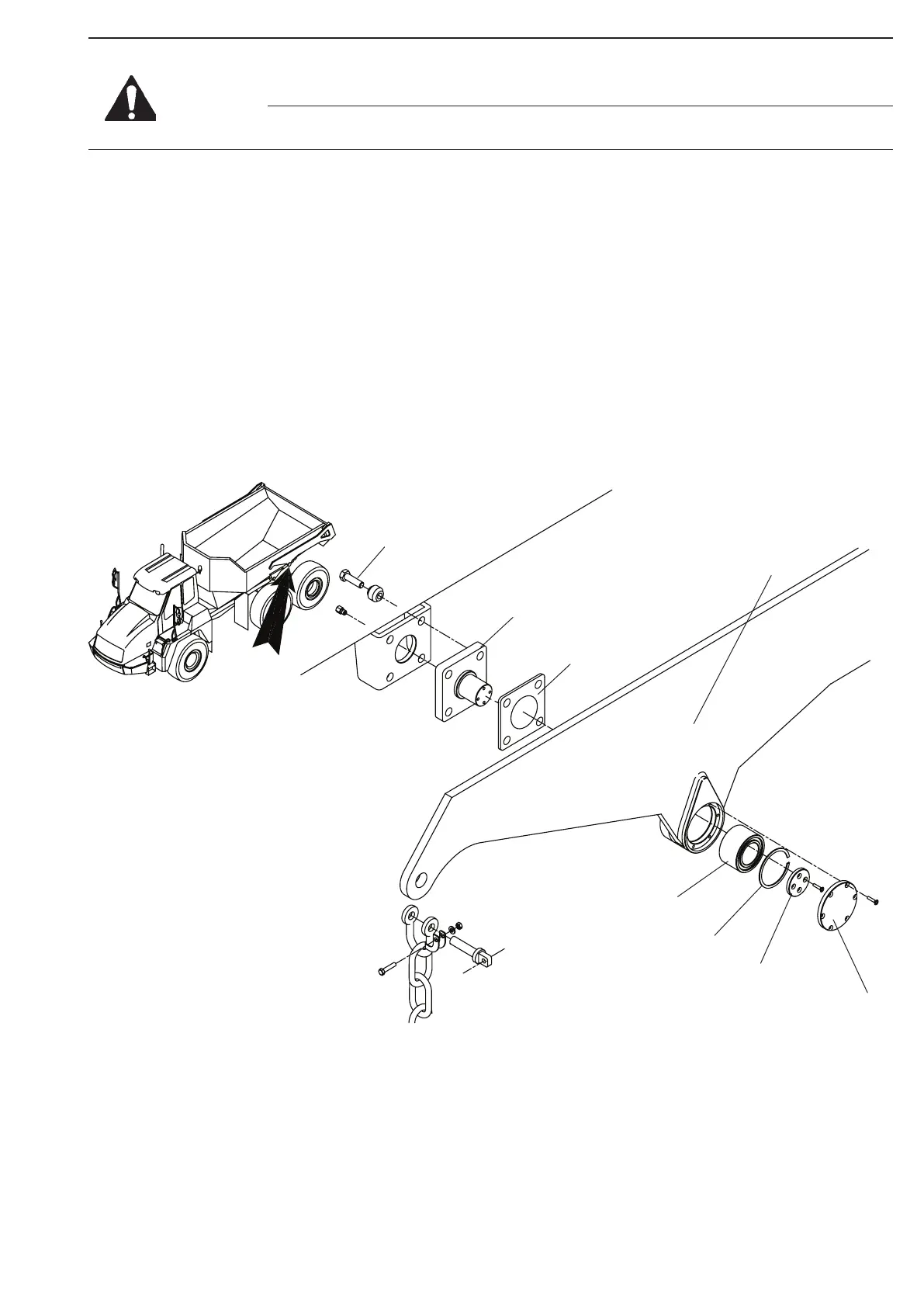

Figure 2
