SHOP MANUALSHOP MANUAL
OPTION
Ch 9 Page 4
Ch 9 Page 5
OPTION
Lift the tail gate and place on dumper body. Secure tail gate temporary with large clamps.
Lift each arm in position and secure arm bearing. to the bracket by tightening four bolts.
Attach the lubrication line if equipped.
Enter the bolts securing the arms to the tail gate, and use the number of shims required to obtain a satisfactory
closing of the tail gate. Tighten the twelve bolts.
Check the chain links, replace if worn. Attach the chains to the tail gate arms.
Control
Start the dumper and tilt the body to check the operation of the tail gate. Re-adjust if necessary.

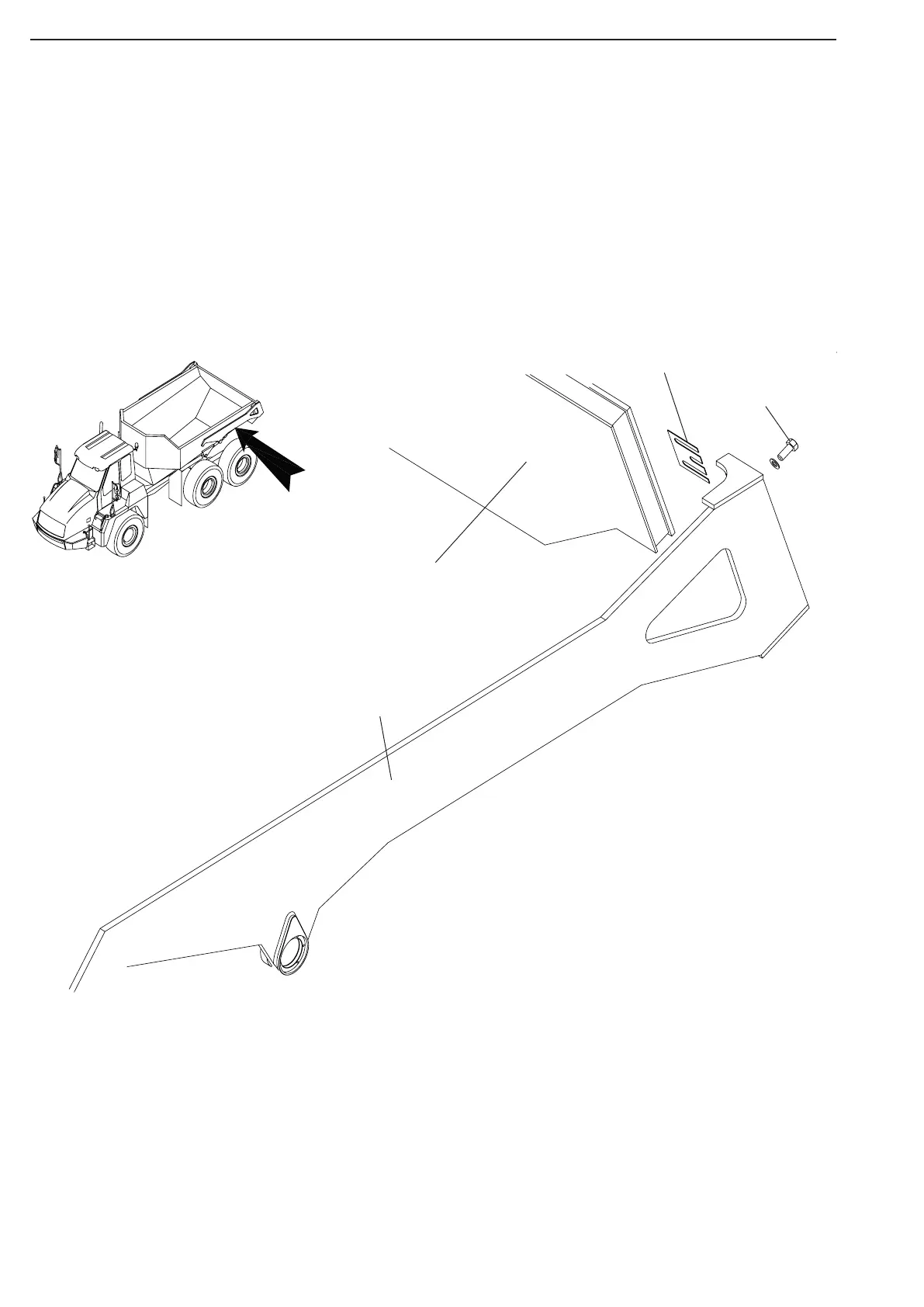

Tail Gate Arm
Tail Gate
Shim
Bolt
Tail Gate Arm Removal
Figure 3
