Theory of Operation
Transfer Unit
The Transfer Unit consists of the Belt, ADC Sensor, ADC Solenoid, ADC Pad,
and ESA Roller.
■ Belt
The Belt feeds the paper toward the direction of the Fuser.
■ ADC (CTD) Sensor
The ADC Sensor detects the toner patches on the Belt and converts them
to voltage value. The voltage value is used to control the density of toner.
■ ADC Solenoid
To activate the ADC Pad, turn On the ADC Solenoid for a fixed time
before the ADC Sensor starts reading the toner patches. When turned
On, the ADC Solenoid activates the ADC Pad, which cleans
contamination on the ADC Sensor surface.
■ ESA Roller
The ESA Roller discharges a positive voltage to the paper. Toner transfer
efficiency is raised by applying a positive charge to the paper.

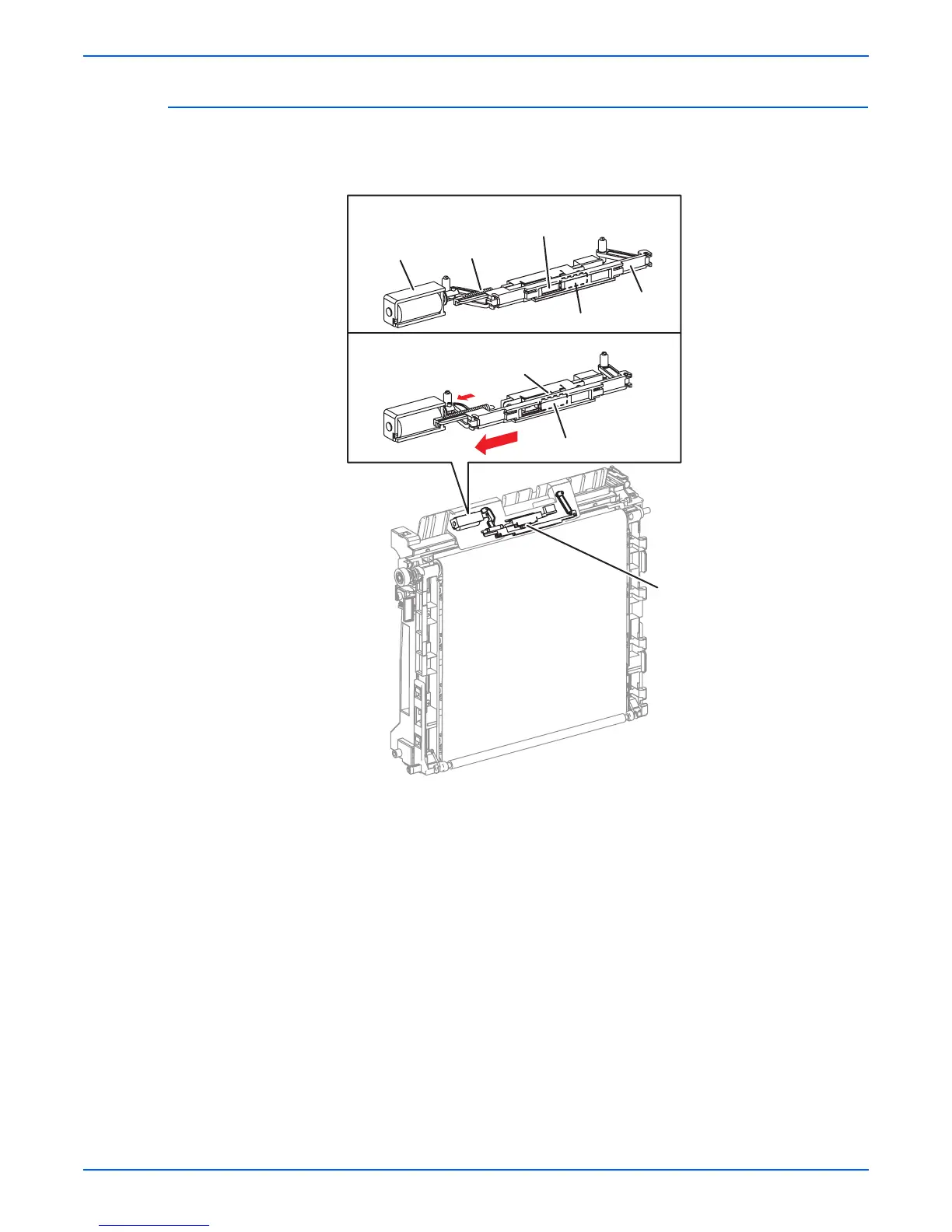

s6180mfp-054
Normal Position
Spring
ADC Solenoid
ADC Solenoid On
Position of ADC Sensor
(Window = Open)
ADC Pad
ADC Pad
Shutter
Position of ADC Sensor
ADC Sensor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
