Xerox Phaser 6180MFP Service Manual

2-6 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

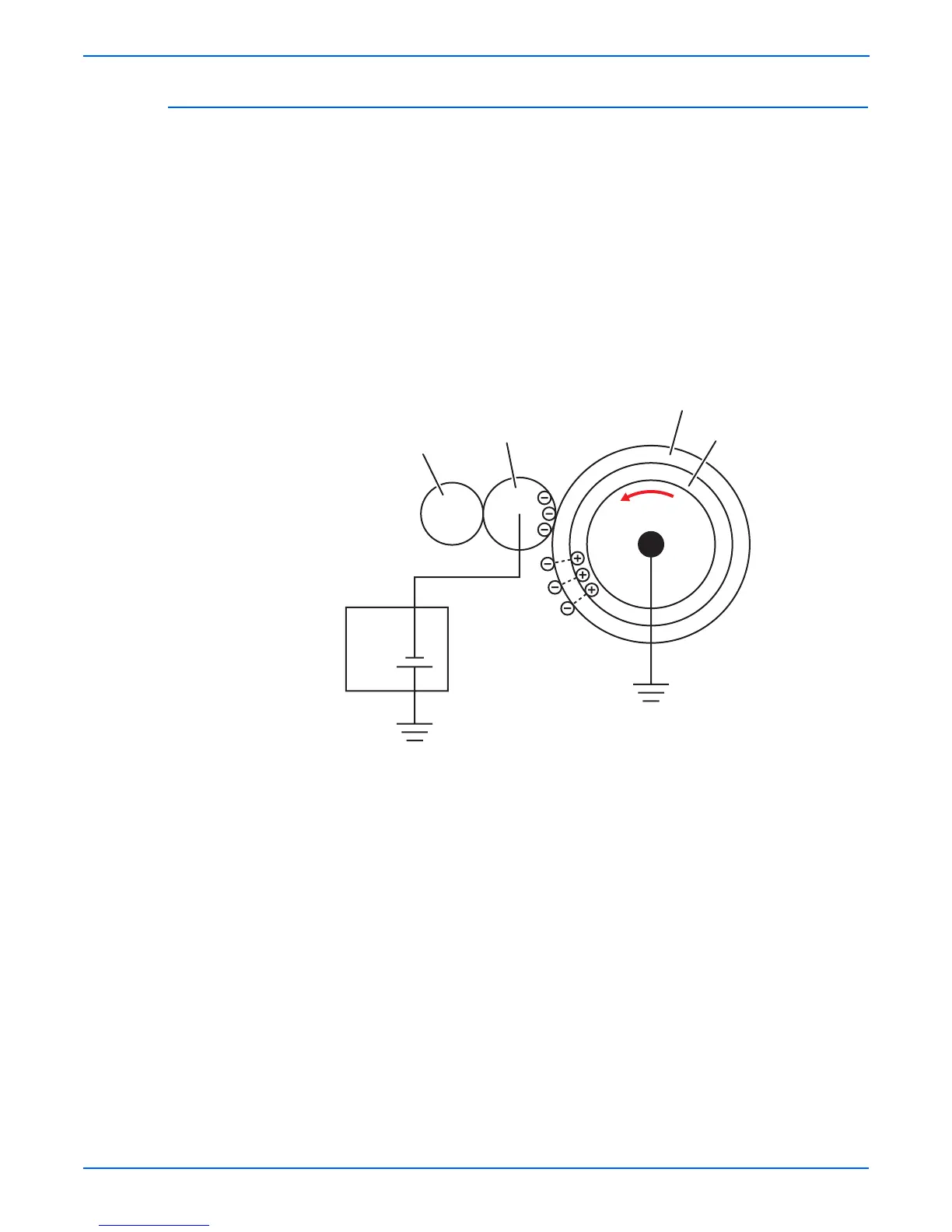

Charging
The Drum surface is charged with negative electricity by discharging of the
Bias Charge Roll (BCR) while rotating at a constant speed. This process is
performed in parallel for Cyan, Magenta, Yellow, and Black colors.
The BCR is kept in contact with the Drum and rotates following the rotations of
the Drum. The BCR is a conductive roll, which receives negative voltage from
the High-Voltage Power Supply (HVPS) and discharges a negative Direct
Current (DC) voltage.
The Drum surface is uniformly and negatively charged with DC bias voltage.
The Drum surface is a photoreceptor (which is an insulator in a dark area and
a conductor when receiving light) and the Drum inside is composed of
conductor.
The BCR Cleaner contacts with the BCR to catch the toner.
s6180mfp-030
Cleaning Roll
BCR
Photoreceptor
Conductor
Drum
HVPS

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
