8-92 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Controller Shield Box Assembly (PRT AIO Box Assembly) (PL9.1.13)
1. Remove the Rear Cover (page 8-18).
2. Remove the Bottom Cover (page 8-19).
3. Remove the Left Pole Inner Cover (page 8-24).
4. Remove the Left Pole Cover (page 8-25).
5. Loosen the Knurling screw (PL9.1.12) and open the Controller Shield
Window Plate (PL9.1.10).

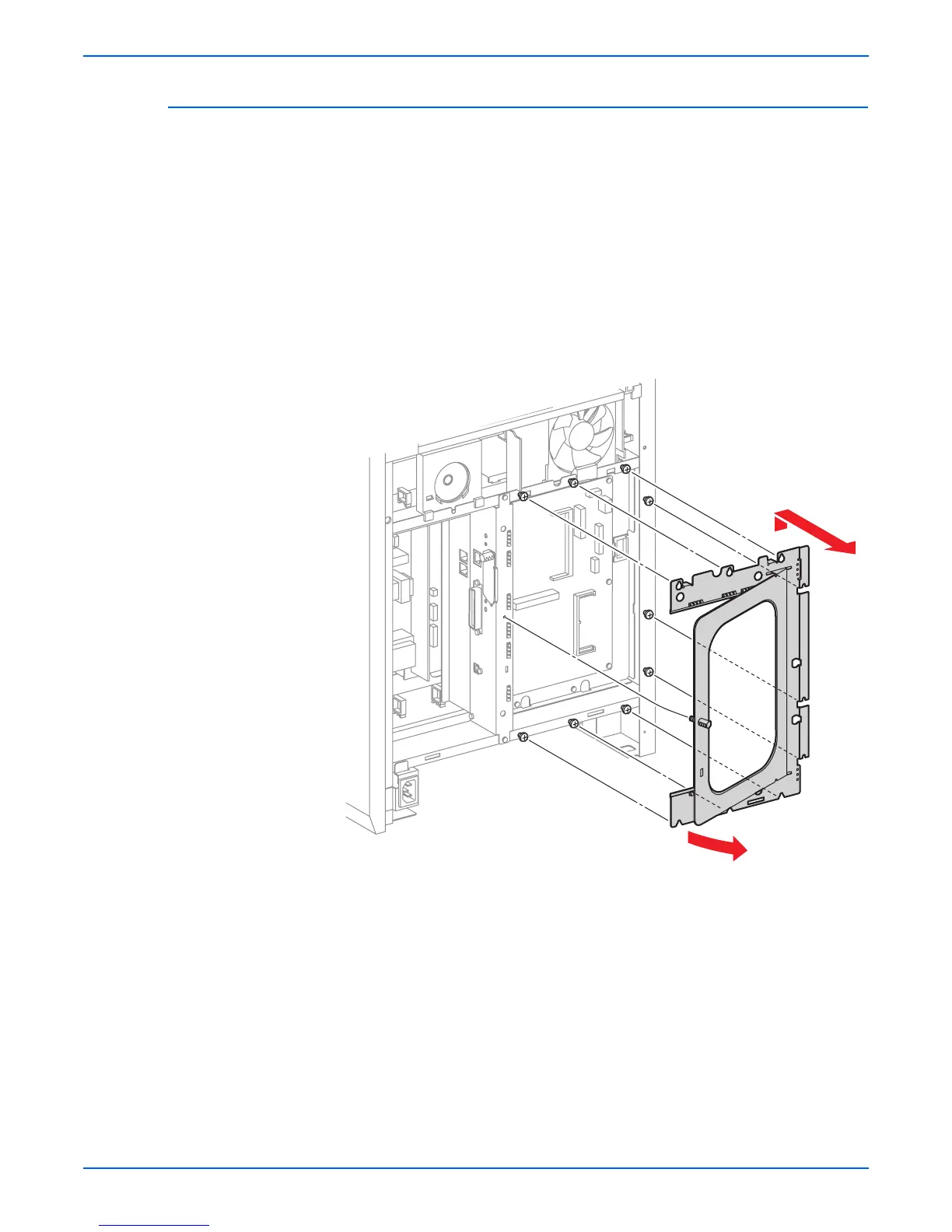

6. Loosen 9 screws securing the Controller Shield Window Assembly
(PL9.1.7) to the printer.
7. Slightly slide the Controller Shield Window Plate upward until the U-
shaped grooves on the Controller Shield Window Plate are disengaged
from the 9 screws.
s6180mfp-320
