8-126 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Tray 3 Left Tray Guide (PL13.3.13)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).
3. Remove the Optional Feeder Assembly (page 8-117).
4. Remove the Tray 3 Front Left Cover (page 8-119).
5. Remove the Tray 3 OPF Left Cover (page 8-120).

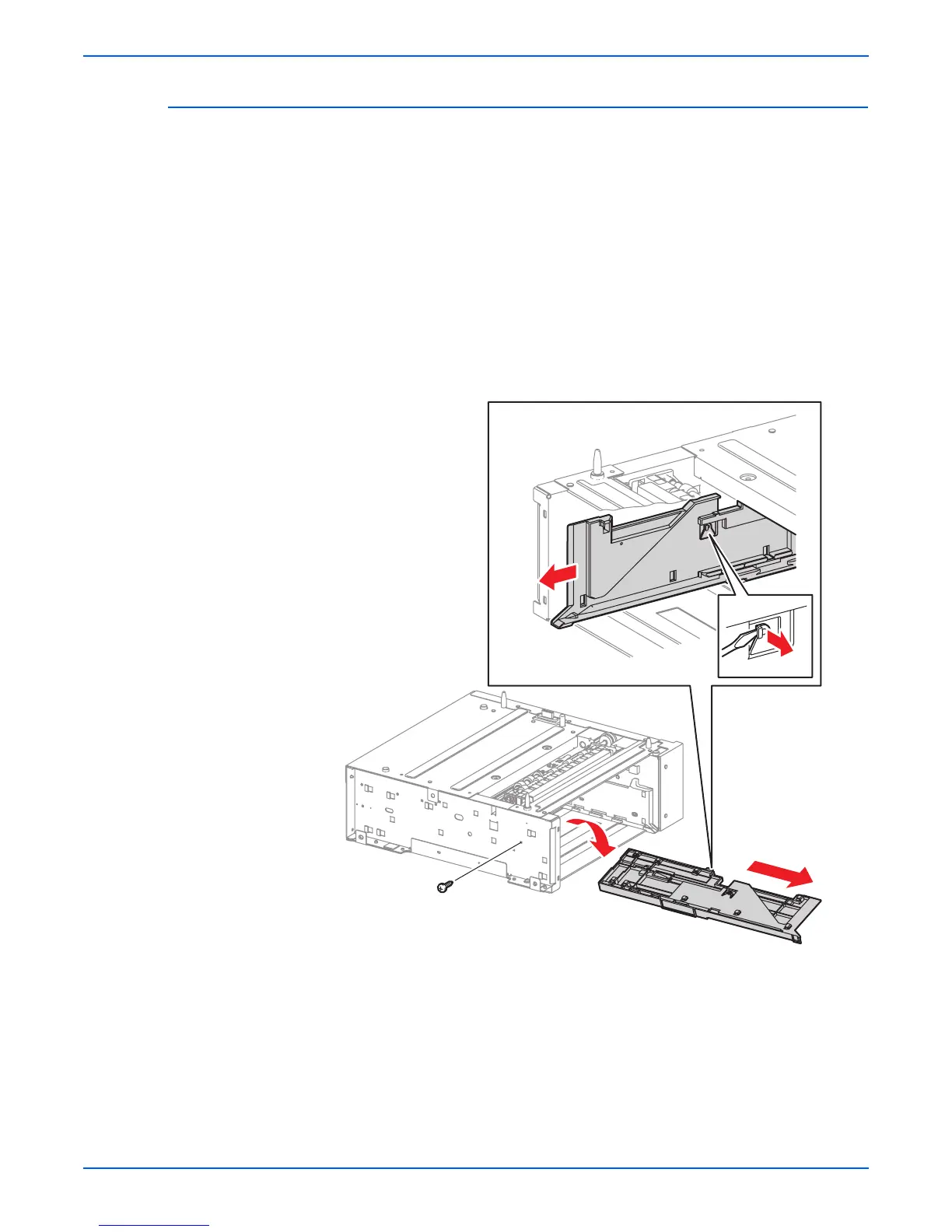

6. Remove 1 screw (8 mm) securing the Tray 3 Left Guide to the Optional
Frame Assembly (PL13.3.1).
7. Use a screwdriver to release the notch on the Tray 3 Left Guide. Shift the
Tray 3 Left Guide toward to release the 9 hooks on the Tray 3 Left Guide
from the holes of the Optional Frame Assembly.
8. Tilt the Tray 3 Left Guide toward the inside and remove the Tray 3 Left
Guide from the Optional Frame Assembly.
s6180mfp-421
