Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-75
Theory of Operation
Duplex Drive

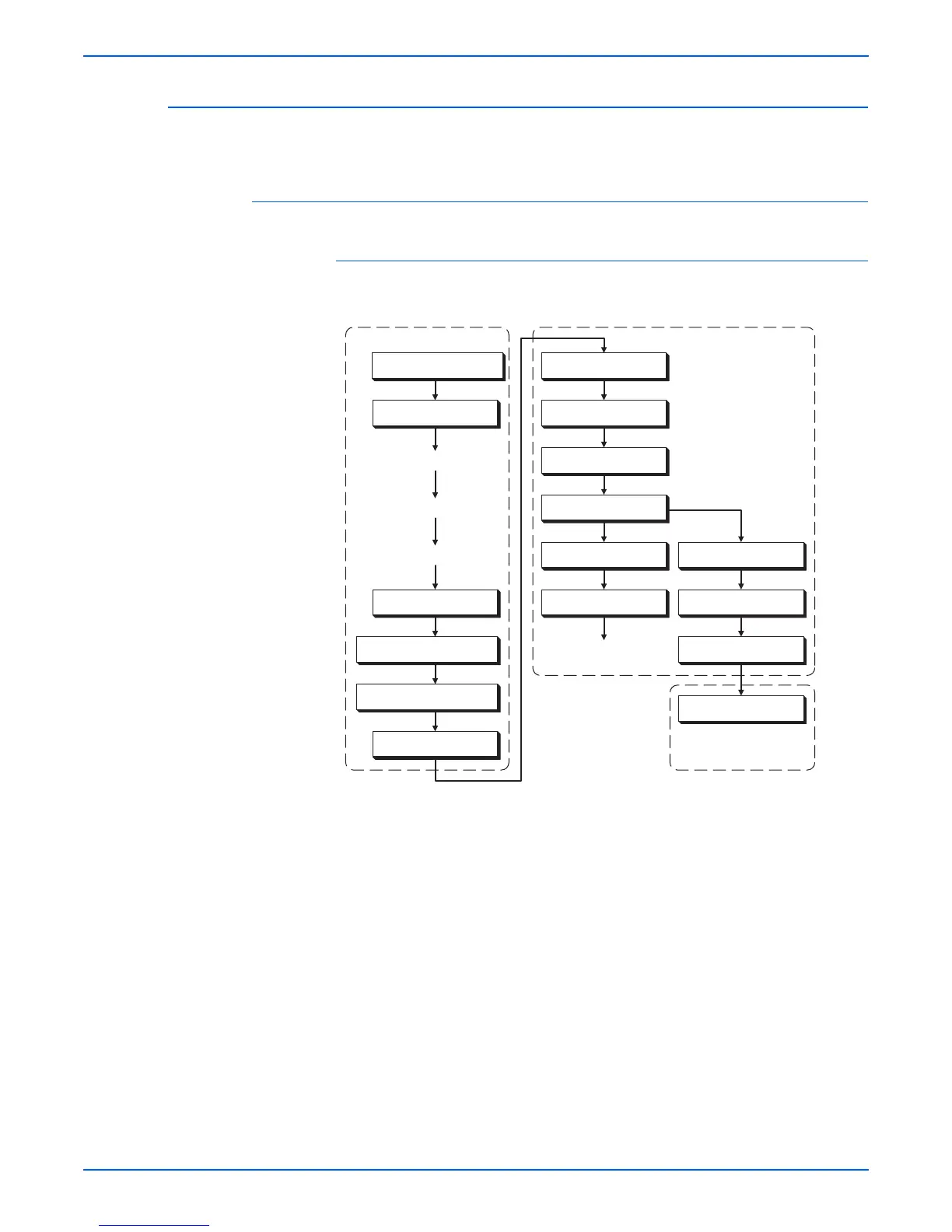

The following diagram provides a process flow of the Duplex Drive.
Duplex Mode
Process
s6180mfp-075
[Duplex Mode]
Duplex Module
Duplex Drive
Duplex Gear 40Z
[Duplex Roller 2]
[Duplex Belt]
[Duplex Roller 1]
Duplex Clutch
Duplex Idler Gear 21Z
Duplex Idler Gear 2
Duplex Idler Gear 1
Duplex Gear 21Z 25Z
Duplex Gear 25Z
Fuser
Exit Idler Gear 6
Exit Idler Gear 6
Exit Idler Gear 5
Exit Idler Gear 4
Exit Idler Gear 3
Exit Idler Gear 2
Exit Gear
[Exit Roller]
[Name of Moving Parts]
Exit Clutch
Main Drive

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
