2-74 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

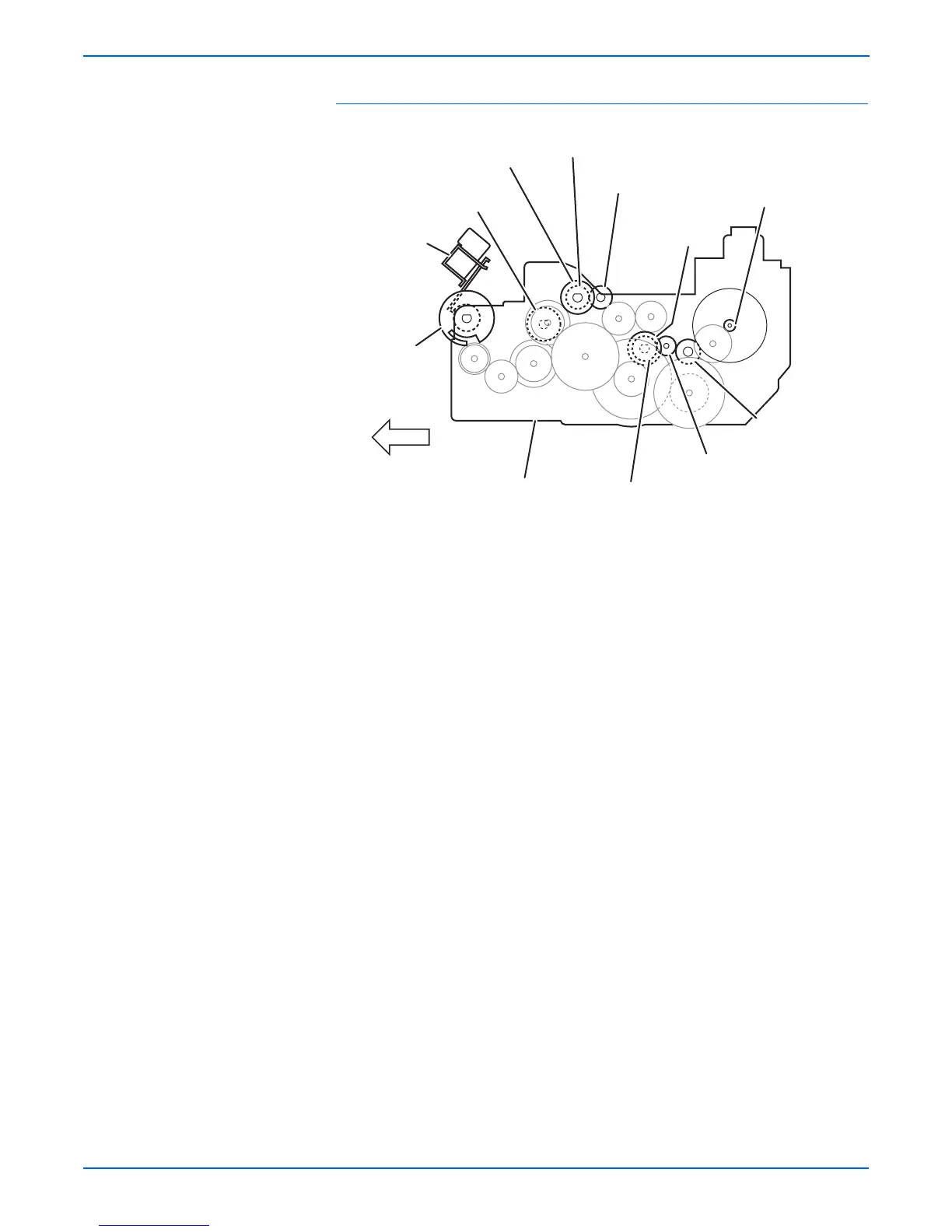

Front View
s6180mfp-074
[Name of Moving Parts]
Registration Clutch
[Rubber Registration Roller]
Rubber Registration Gear
Metal Registration Gear
[Metal Registration Roller]
Feed Clutch
Tray 2 Motor
Nudger Roller
Gear
[Feed Roller]
Nudger Idler Gear
Oneway Nudger Clutch
[Feed Roller]
Drive Assembly
Front
Tray 1 (MPT) Gear
[Tray 1 (MPT)
Roller]
Tray 1 (MPT)
Feed Solenoid
Turn Clutch
[Turn Roller]

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
