Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 5-31

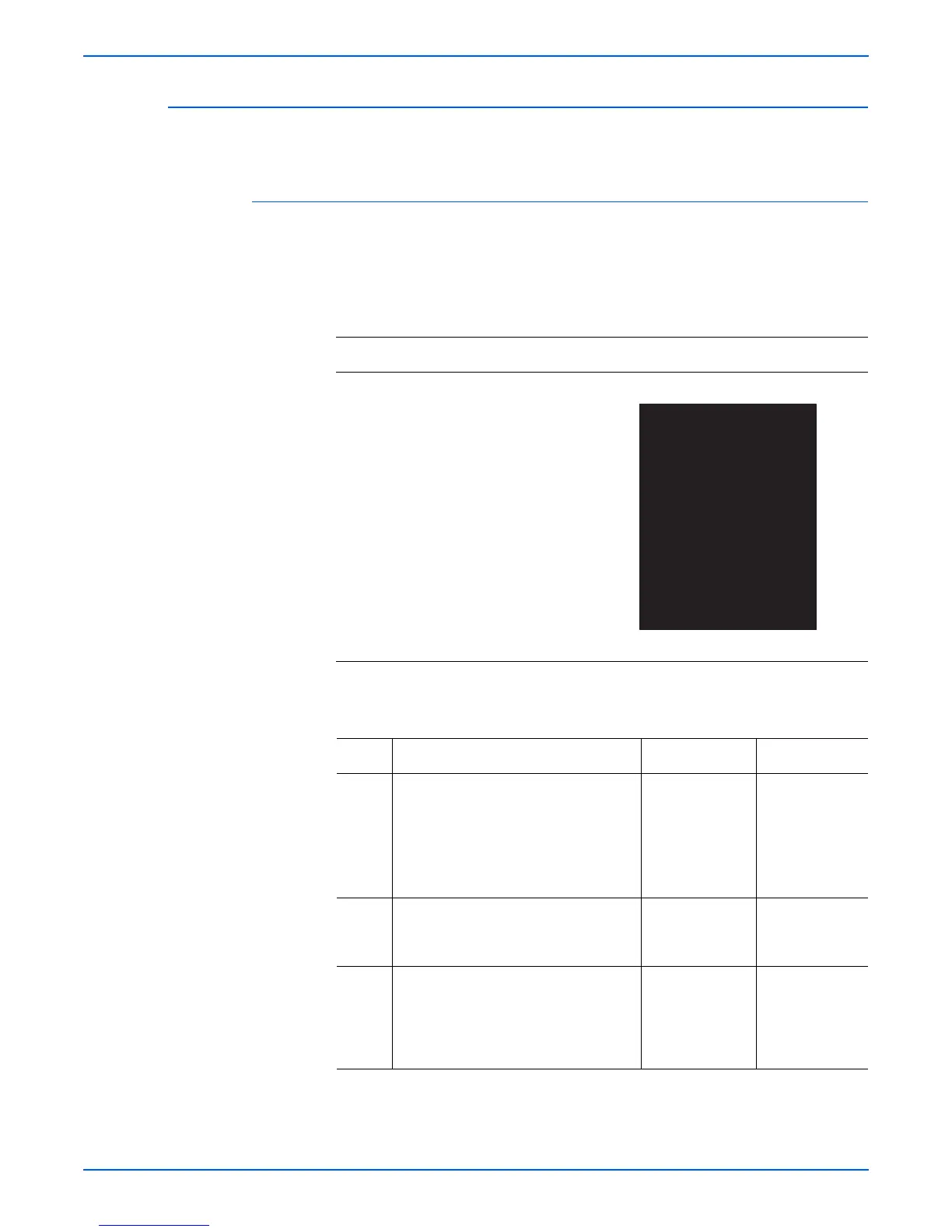

Print-Quality Troubleshooting
Black Print
The entire image is black.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Unit, PL4.1.1
■ Laser Unit, PL5.1.12
■ Print Cartridge (C/M/Y/K),
PL5.1.17-20
■ HVPS, PL5.2.15
■ Scanner Controller Board, PL9.1.1
■ Image Processor Board, PL9.1.20
■ MCU Board, PL9.2.13
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Perform Test Print (Cyan 20%,
Magenta 20%, Yellow 20%, and
Black 20%): Service Mode > Printer
Diag > Test Print.
2.Does the error still occur when
printing?
Go to step 5. Go to step 2.
2 1.Perform a copy job.
2.Does the error still occur when
copying?
Go to step 3. Complete.
3 1.Check the Scanner Controller Board
wiring harness connectors P/J64
and P/J65. Reseat the connectors.
2.Does the error still occur?
Replace the ADF
Scanner
Assembly
(page 8-103).
Go to step 4.
Complete.
