Xerox Phaser 6180MFP Service Manual

8-22 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

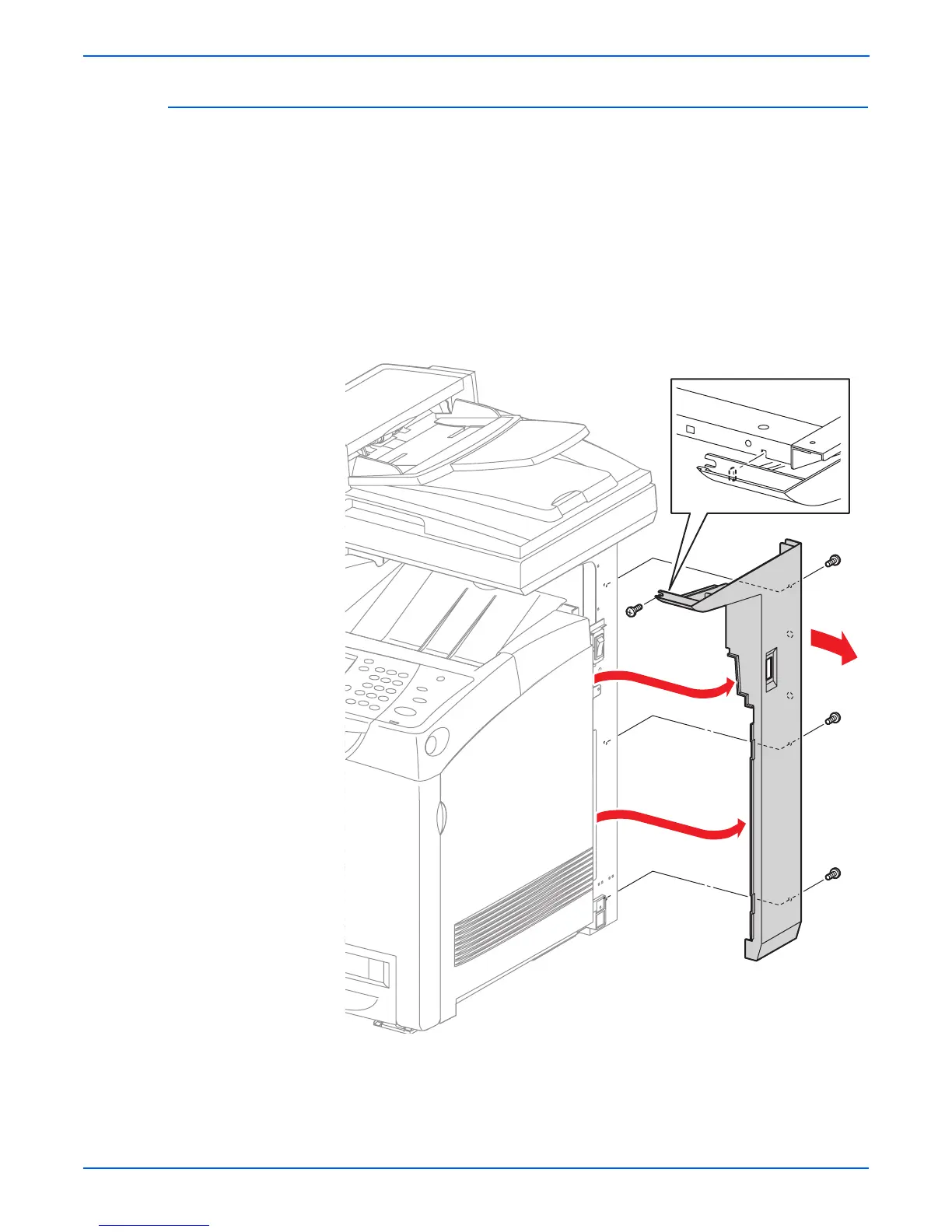

Right Pole Cover (PL1.1.8)
1. Remove the Rear Cover (page 8-18).
2. Remove the Bottom Cover (page 8-19).
3. Remove the Right Pole Inner Cover (page 8-21).
4. Remove 4 screws (6 mm) securing the Right Pole Cover.
5. Release the notch on the screw mounting position on the front section of
the Right Pole Cover from the printer.
6. Slide the rear section of the Right Pole Cover outward.
7. Release the rims on the front section of the Right Pole Cover from the Top
Cover and from the inside of the Right Cover (PL1.1.9) and remove the
Right Pole Cover.
s6180mfp-241

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
