Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 5-67
Print-Quality Troubleshooting

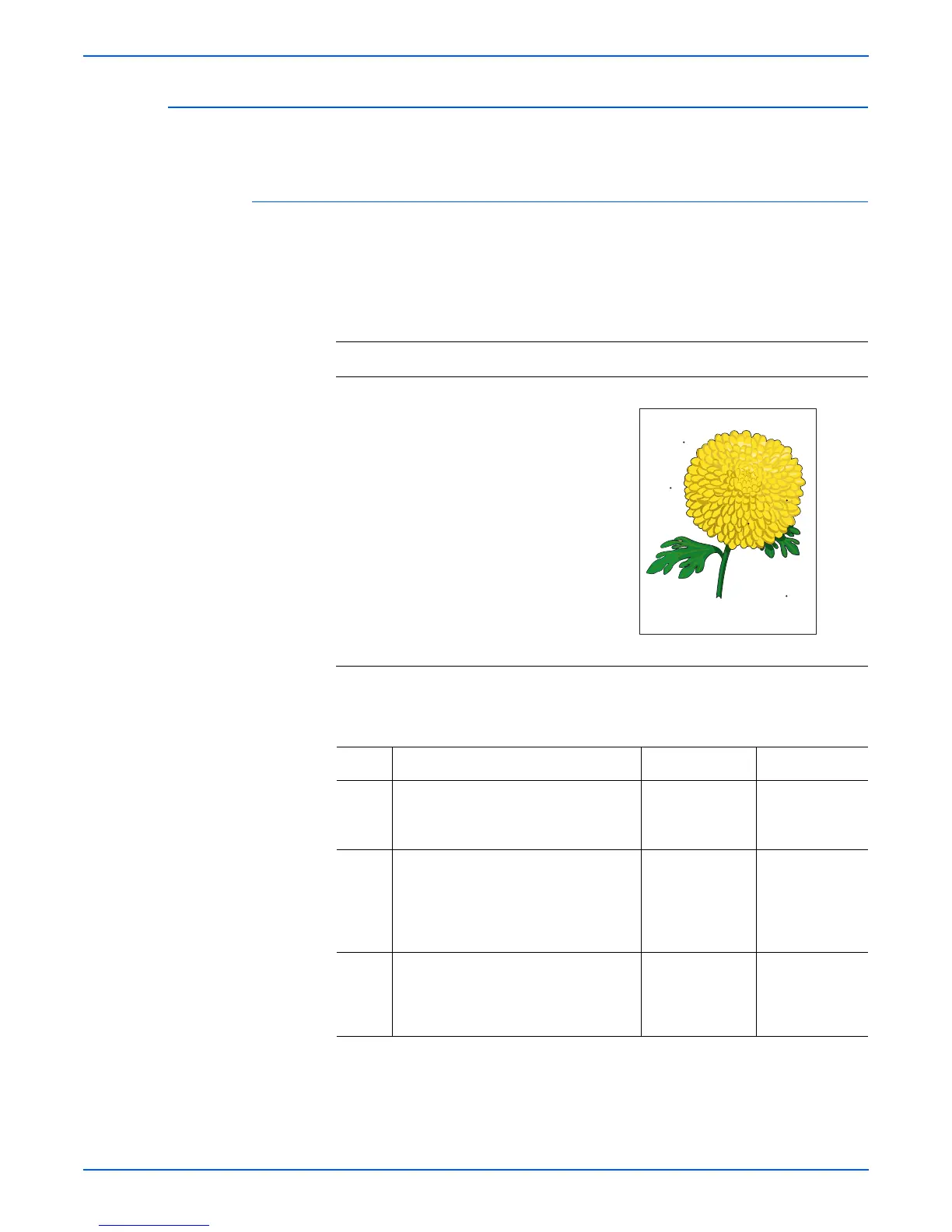

Spots (from ADF)
There are spots on copies from the ADF.
Initial Actions
■ Check the document glass.
■ Ensure there are no debris on the document glass.
Troubleshooting Reference Table
Applicable Parts Example Print
■ ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Check the output document.
2.Are there spots on the output
document?
Replace the
original
document.
Go to step 2.
2 1.Check for any debris on the
document glass and the CVT
window.
2.Are there any debris?
Remove the
debris and clean
the document
glass using a
lint-free cloth.
Go to step 3.
3 Does the image quality improve? Complete. Replace the
ADF Scanner
Assembly
(page 8-103).
Spots on Glass
