Xerox Phaser 6180MFP Service Manual

8-56 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
CRUM Connector (PL5.2.1)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Print Cartridge Assembly (Black - page 8-57) (Cyan,
Magenta, Yellow - page 8-58).

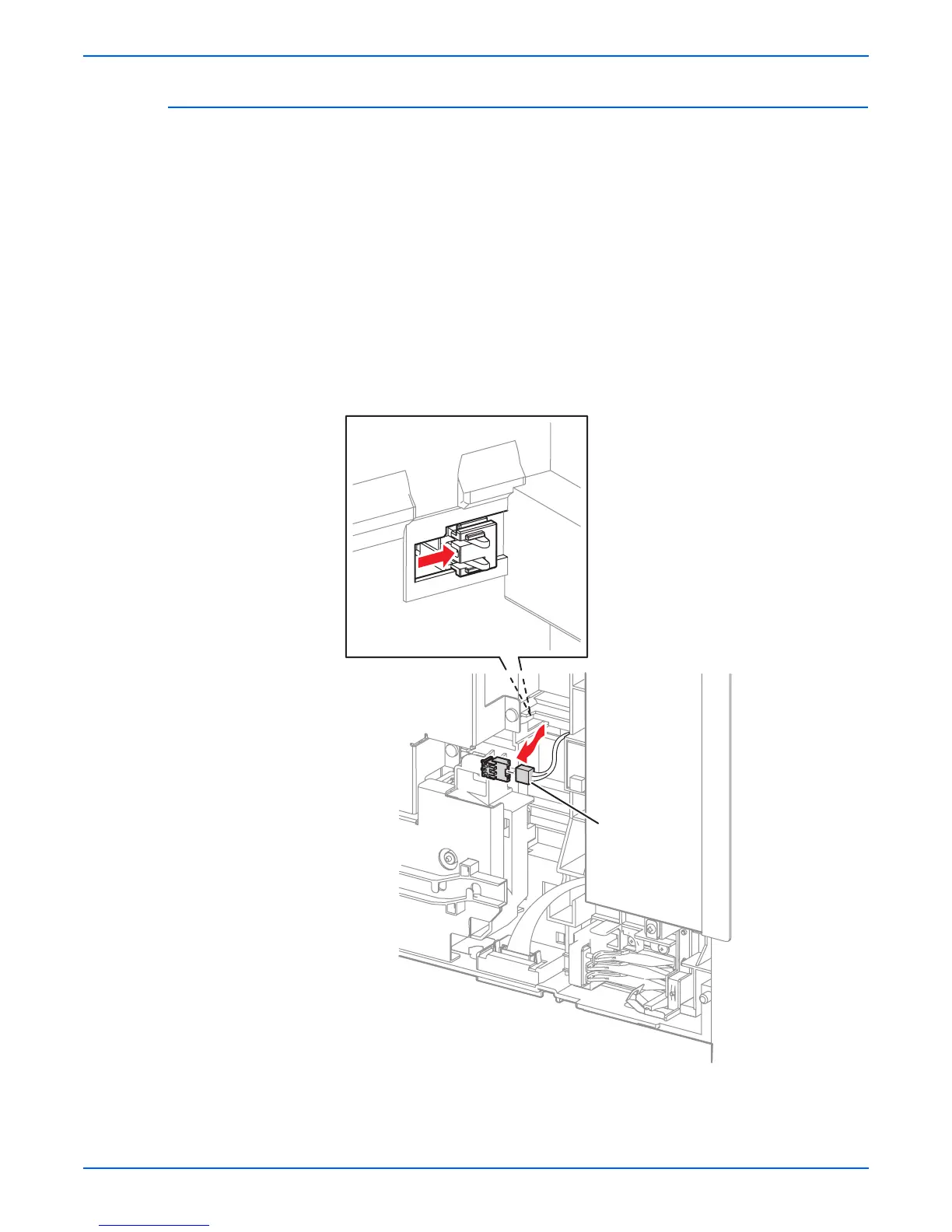

9. Shift the CRUM Connector to the right and remove the groove of the
CRUM Connector from the printer.
10. Disconnect and remove the CRUM Connector.
s6180mfp-428
P/J311-P/J314
