8-94 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Memory Card (PL9.1.22)
Caution
Be sure to wear proper ESD protection to prevent from damaging the
Memory Card.

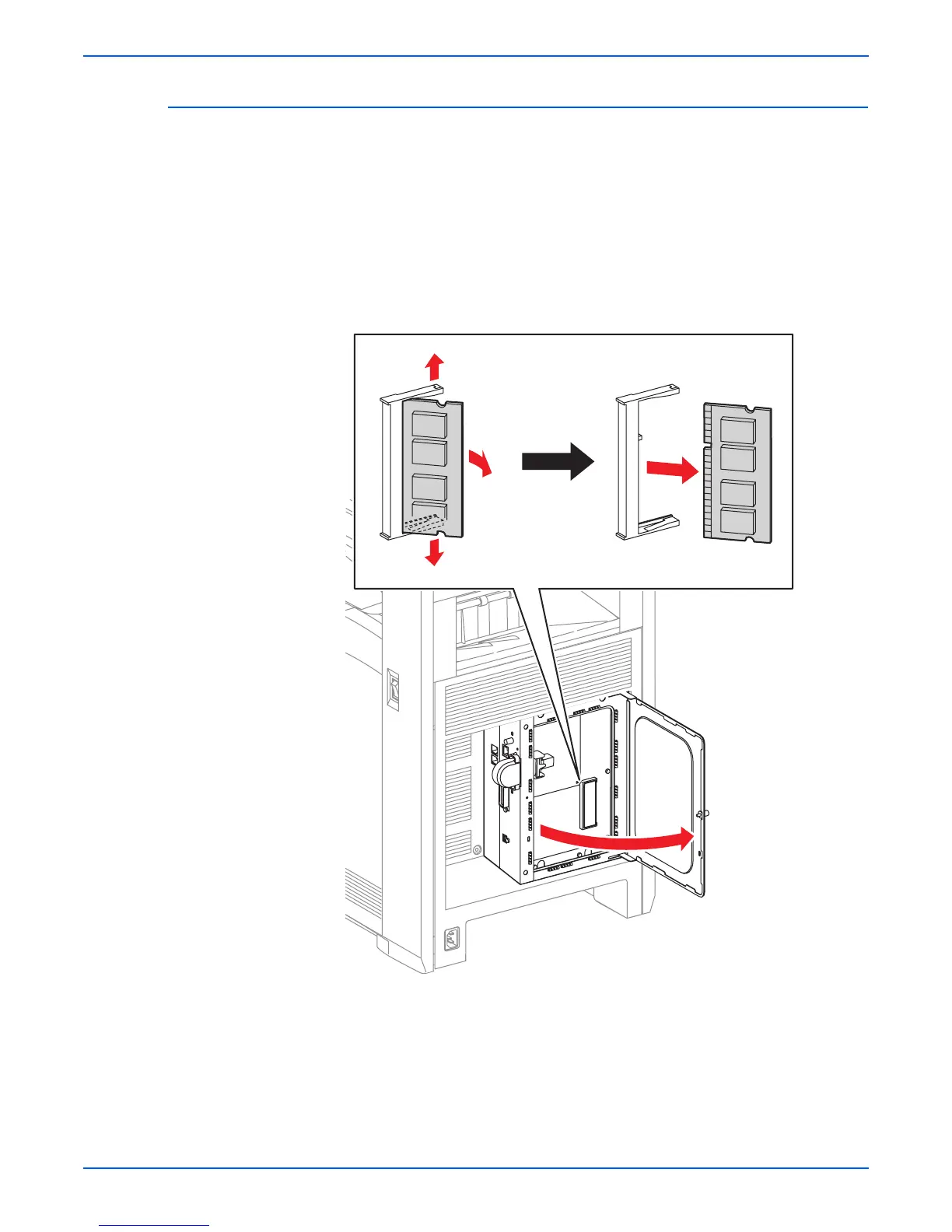

1. Loosen the Knurling Screw (PL9.1.12) and open the Controller Shield
Window Plate (PL9.1.10).
2. Gently release both tabs on the memory socket until the Memory Card
releases.
3. Remove the Memory Card.
s6180mfp-321
