Xerox Phaser 6180MFP Service Manual

8-12 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Fuser Unit (PL6.1.10)
W
arn
i
ng
The Fuser may be hot. Turn the printer power Off and allow at least 5
minutes for the Fuser to cool before removing the Fuser.
1. Open the Front Cover.
2. Open the Duplex Gate Chute (PL6.1.13).
3. Release the levers on the left and right sides of the Fuser to unlock the
Fuser from the printer.
4. Lift the green latches, push the Fuser toward the front, and lift the Fuser
up to remove it.

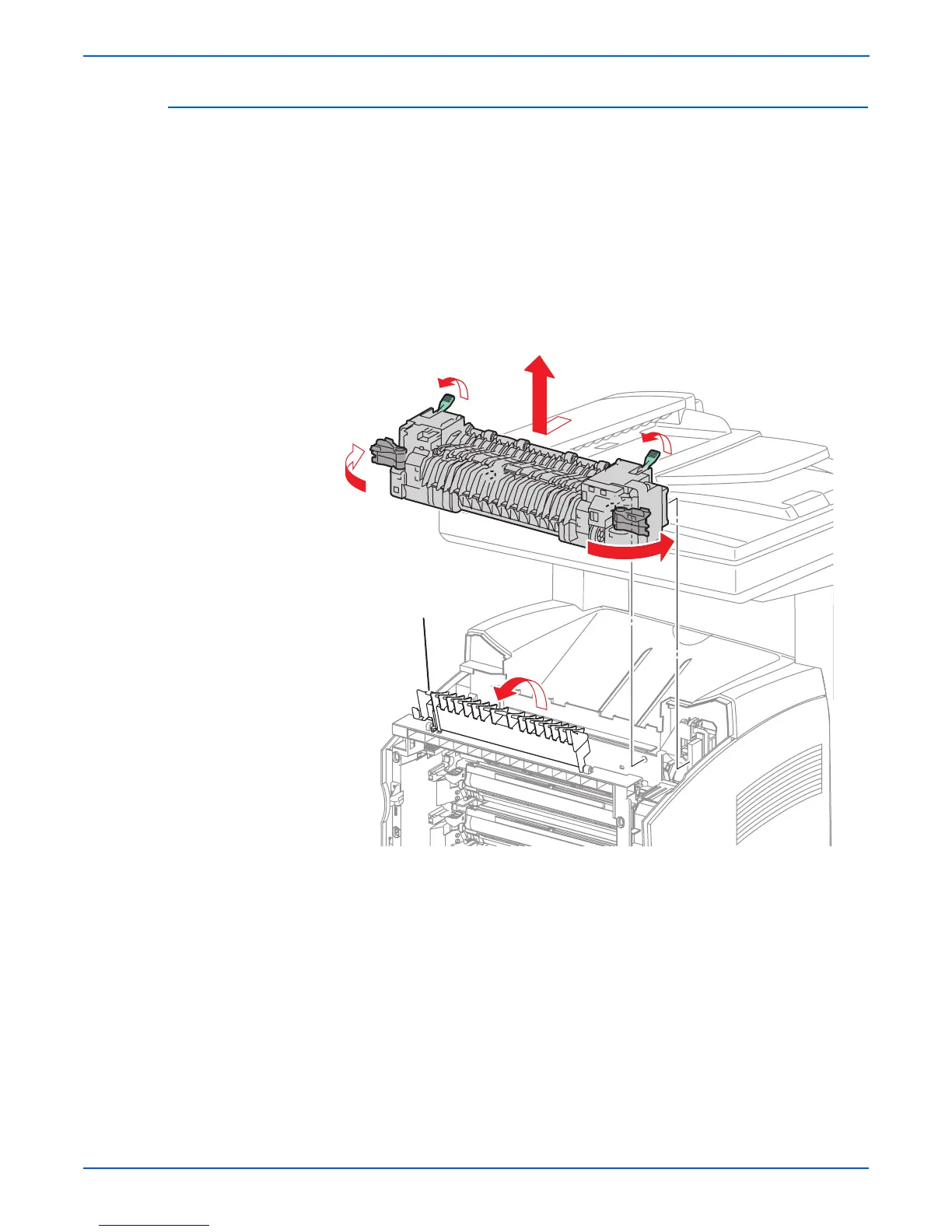

s6180mfp-129
Duplex Gate Chute
