Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-27
Service Parts Disassembly
Top Cover (PL1.1.1)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19)
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Left Pole Inner Cover (page 8-24).
9. Remove the Left Pole Cover (page 8-25).
10. Remove the Left Cover (page 8-26).
11. Remove 3 screws (6 mm), 1 screw (8 mm), and 1 screw (10 mm) securing
the Top Cover.
12. Lift the Top Cover to release the tabs on the front center and the front left
of the Top Cover from the hook and hole on the printer.
13. Slightly rotate the Top Cover at angle and slide the Top Cover forward to
remove it.

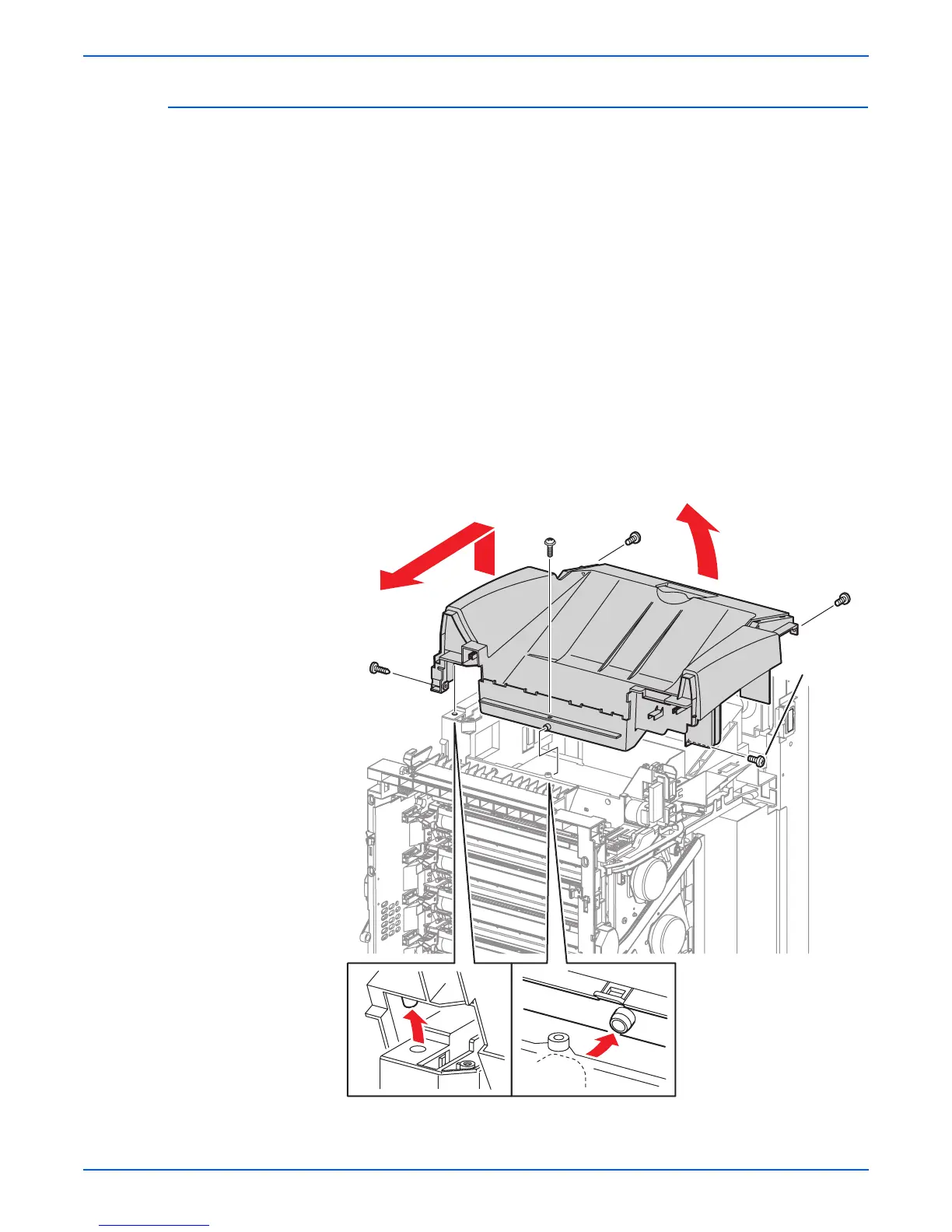

s6180mfp-244
8 mm
10 mm
6 mm
6 mm
6 mm
