Xerox Phaser 6180MFP Service Manual

8-74 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

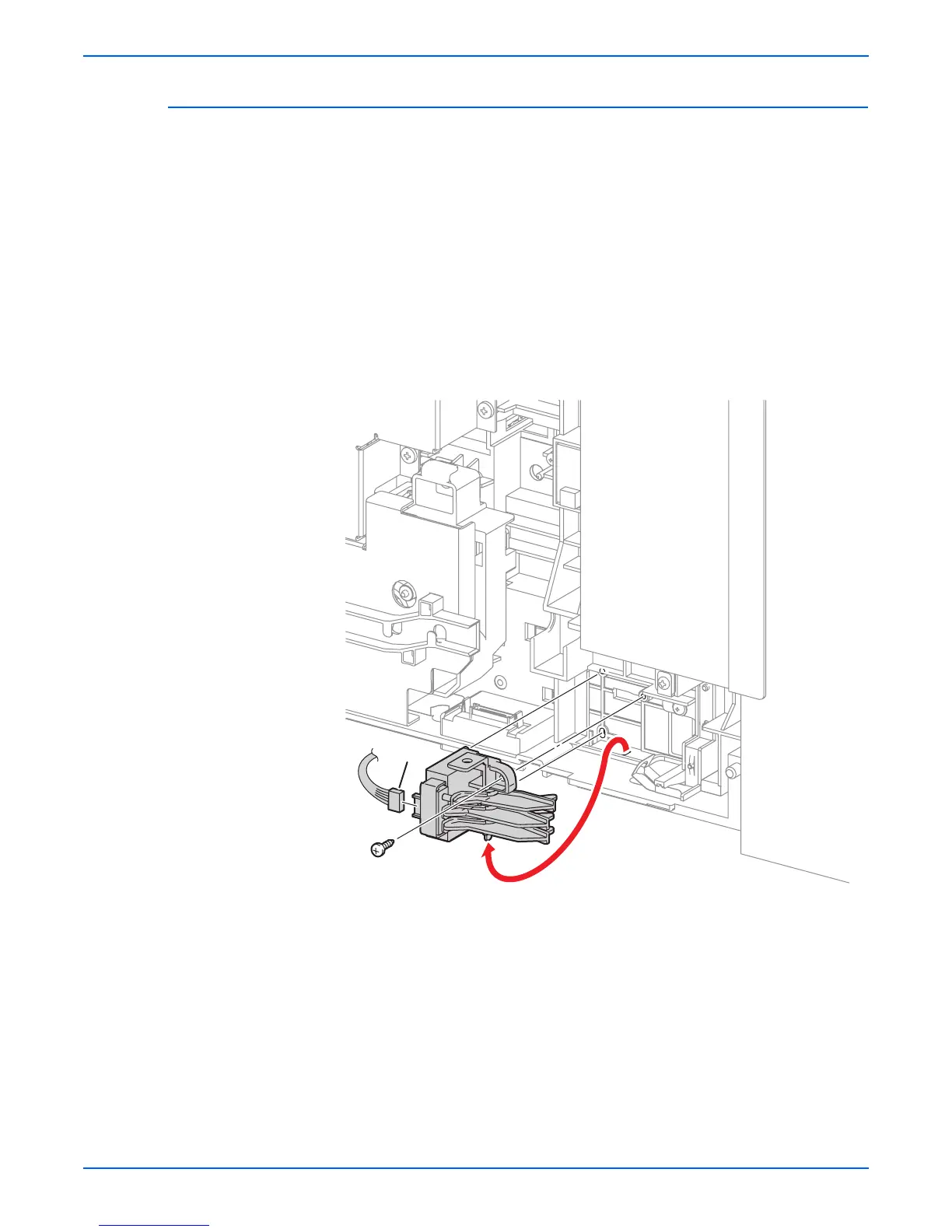

Tray 2 Size Switch Assembly (PL7.1.18)
1. Open the Front Cover.
2. Remove the Fuser.
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Disconnect the Size Switch connector P/J231.
9. Remove 1 screw (10 mm) securing the Size Switch to the printer.
10. Release the 2 notches of the Size Switch and the notch located on the
bottom from the holes of the printer and remove the Size Switch.
s6180mfp-305
P/J231

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
