Xerox Phaser 6180MFP Service Manual

4-54 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Motor Tests
Main Motor (FULL2/FULL1/HALF1/LOW)
Caution
The Main Motor is in the Main Drive. When performing this procedure,
remove and cover the Print Cartridges to avoid exposure to light.
N
o
t
e
The rotational speed of the Main Motor is as follows:
■ LOW < HALF < FULL2 < FULL1
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Remove the Print Cartridges (page 8-11).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Main Motor (FULL2/FULL1/HALF/LOW) test: Printer Diag >
Engine Diag > Motor Test > Main Motor (FULL2/FULL1/HALF/LOW).

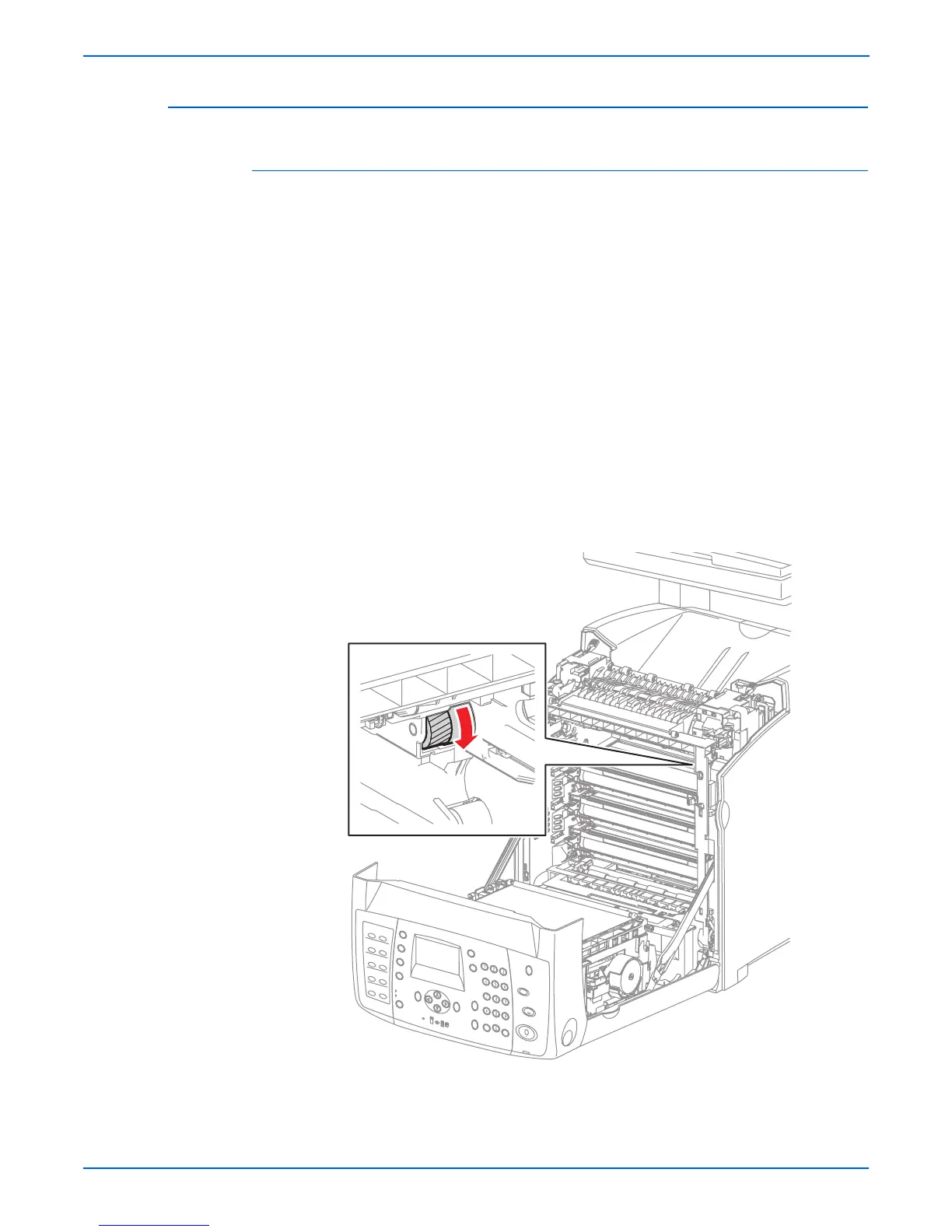

7. Verify that the Main Motor is running and the gear is rotating.
8. Press the Stop button to stop the Main Motor test.
9. Remove the paper clip from the Interlock Switch.
s6180mfp-173

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
