Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-81
Service Parts Disassembly
Electrical
EEPROM Board (PL9.2.1)

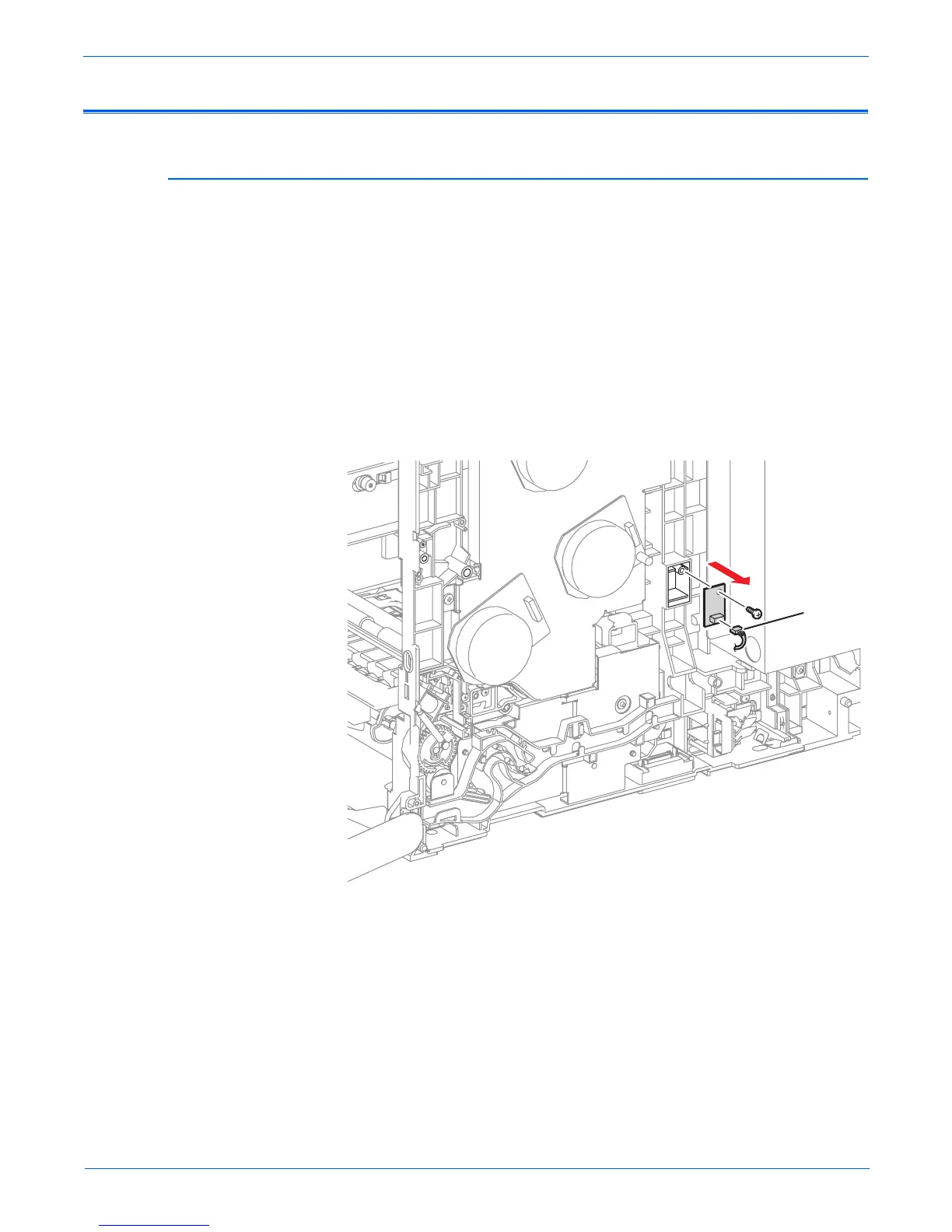

1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Disconnect the EEPROM Board connector P/J144.
9. Remove 1 screw (10 mm) securing the EEPROM Board to the printer.
10. Remove the EEPROM Board.
P/J144
s6180mfp-310
