Xerox Phaser 6180MFP Service Manual

8-44 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

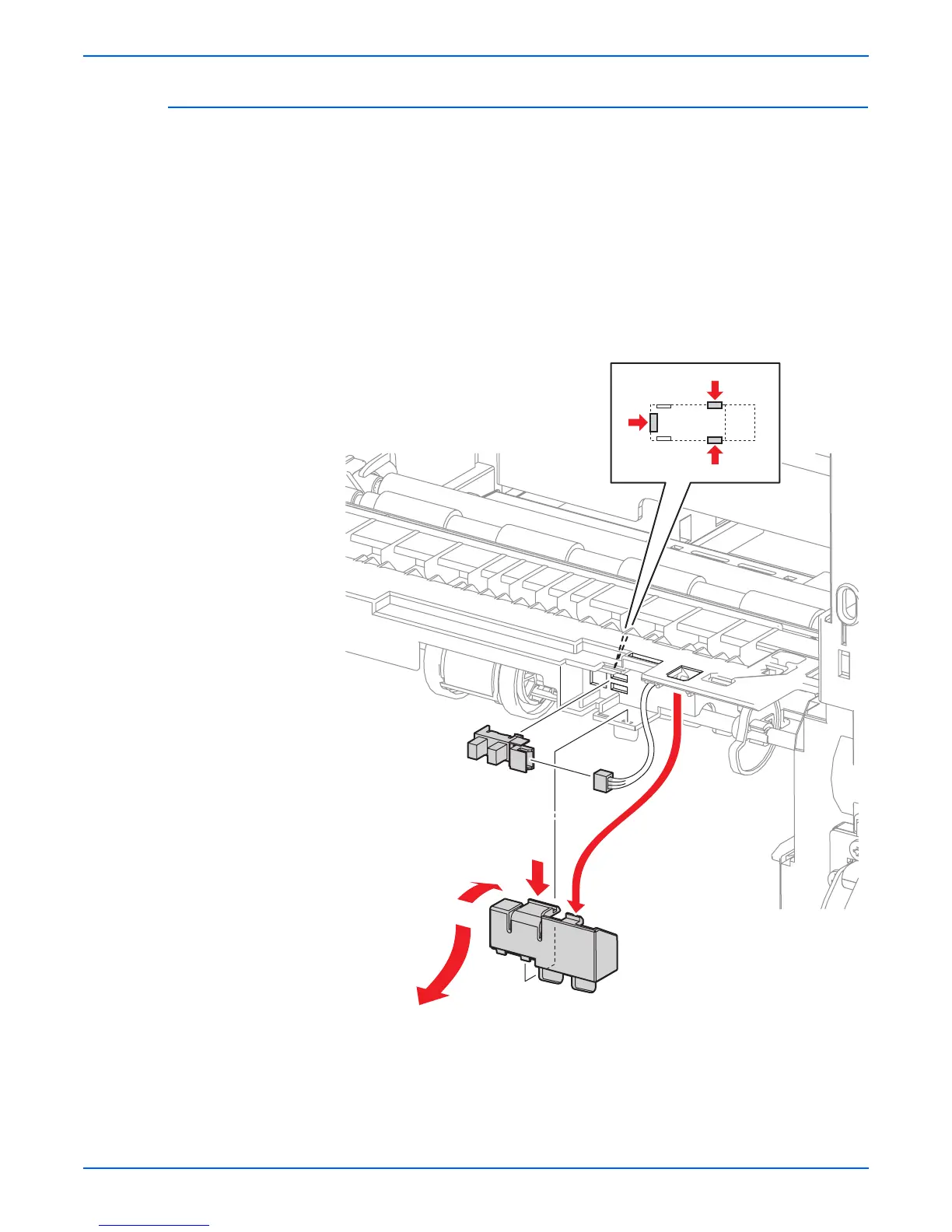

Tray 1 (MPT) No Paper Sensor (PL3.1.15)
1. Remove Tray 2.
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Release the Cover Sensor hook (PL3.1.16).
5. Push the Cover Sensor backward while pressing on the lower side of the
Sensor to remove the latch on the upper right side of the Cover Sensor
from the MPT Chute (PL3.1.14).
6. Release the hooks and remove the Tray 1 (MPT) No Paper Sensor from
the MPT Chute.
7. Disconnect the Tray 1 (MPT) No Paper Sensor connector P/J2751.
s6180mfp-268
P/J2751
