5-44 Phaser 6180MFP Multifunction Printer Service Manual
Print-Quality Troubleshooting
Random Spots
There are spots of toner randomly scattered across the page.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
W
arn
i
ng
Ensure to wait for the Fuser to cool down before starting the procedure.
Troubleshooting Reference Table

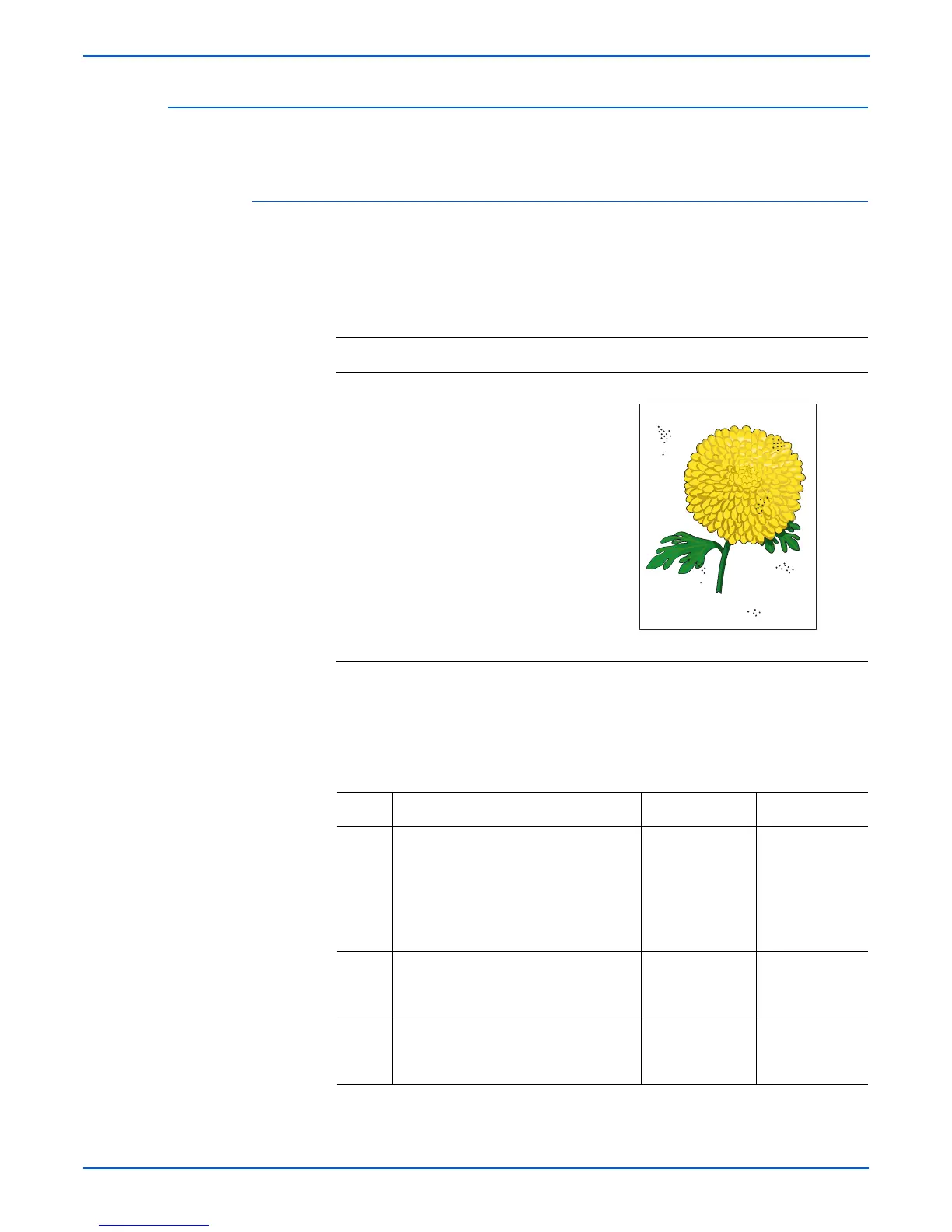

Applicable Parts Example Print
■ Transfer Unit, PL4.1.1
■ Print Cartridge (C/M/Y/K),
PL5.1.17-20
■ Fuser, PL6.1.10
■ Scanner Controller Board, PL9.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Perform Test Print (Cyan 20%,
Magenta 20%, Yellow 20%, and
Black 20%): Service Mode > Printer
Diag > Test Print.
2.Does the error still occur when
printing?
Go to step 6. Go to step 2.
2 1.Perform a copy job.
2.Does the error still occur when
copying?
Go to step 3. Complete.
3 Is the original document normal? Go to step 4. Replace the
original
document.
Random Spots
