Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 4-79
General Troubleshooting
Engine Test Print
This test isolates printer hardware problems to either the Engine Control
Board or Image Processor Board.
Troubleshooting Reference Table
Applicable Parts Wiring and Plug/Jack Map References
■ Image Processor Board, PL9.1.20
■ MCU Board, PL9.2.13
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Remove the Image Processor Board
(page 8-90).
2 Turn the printer power On (the Control
Panel will be blank).

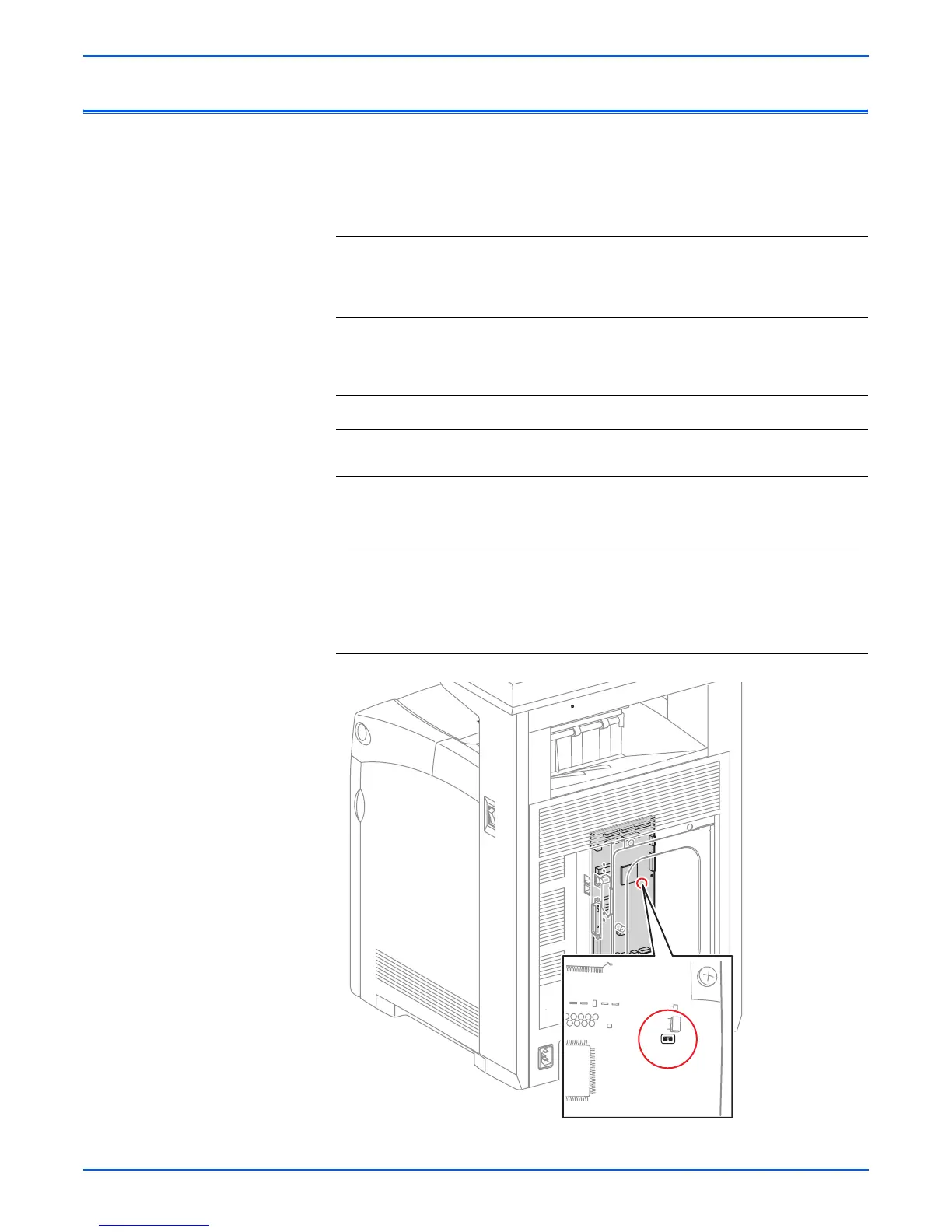

3 Short the two pins on the MCU Board.
4 Did the printer print the Pattern IOT page? Replace the
Processor
Board
(page 8-90).
Replace the
MCU Board
(page 8-88).
s6180mfp-401

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
