8-116 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Optional 550-Sheet Feeder (PL13.1.1)
1. Remove Tray 2.
2. Remove 2 Joint screws (PL13.1.2) securing the Optional 550-Sheet
Feeder to the printer.
Caution
Lifting the printer requires two people. Use care when removing the
printer from the Optional 550-Sheet Feeder.
3. Lift the printer up from the Optional 550-Sheet Feeder.

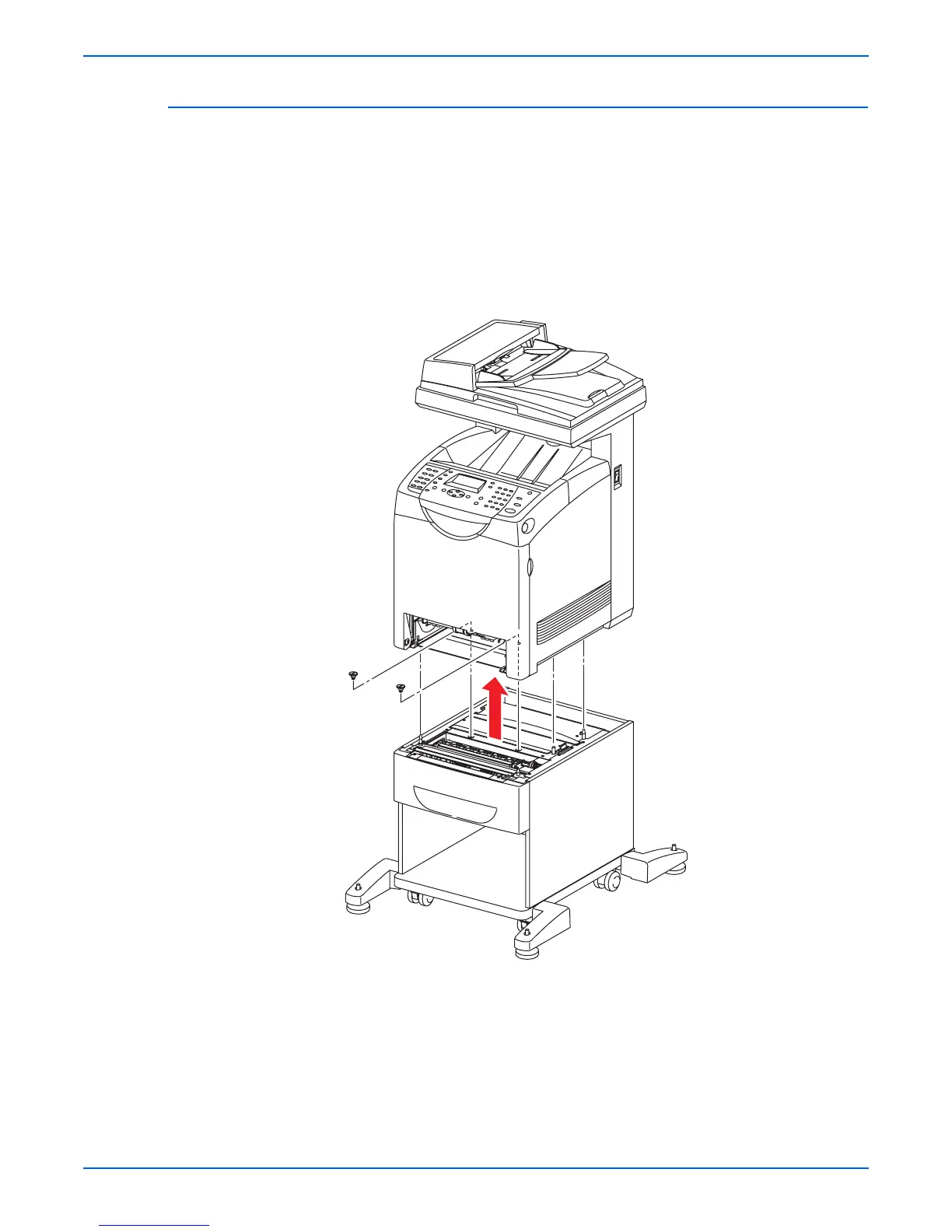

s6180mfp-142
